This product is not longer available, we recommend a similar product instead:

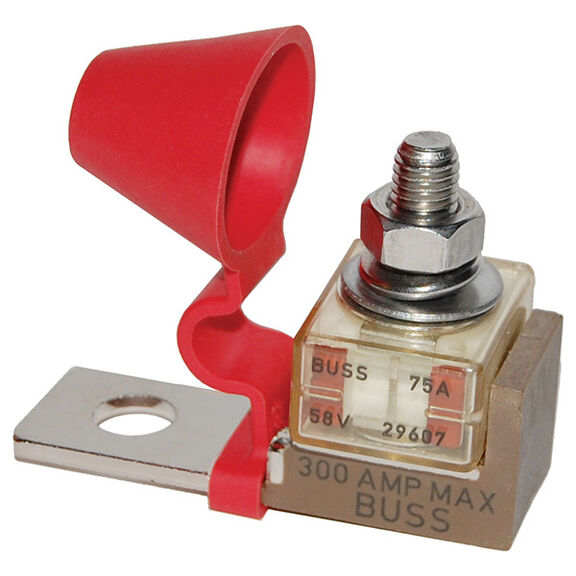

MRBF 1 Terminal Stud Fuse Block
Model #
9368895
Mfg #
5191
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
−
+
-
Add circuit protection at the battery without having to cut a wire
Terminal fuse blocks provide circuit protection by attaching a fuse block directly to the battery terminal. Simply secure a single or double fuse block to the battery terminal, select the appropriate fuse, and attach conductors. Ideal for circuit protection when space is limited. Fuses are available from 30A to 300A to meet the circuit requirements. An integral cover fits over the terminal stud to prevent accidental terminal contact.
Key Features
- New isolated stud design uses standard 5/16" hardware and permits stacking of terminals
- Compact, high-amp fuse Appropriate for DC Main, inverter, windlass, and bow thruster circuit protection
- Provides high current protection in tight space constraints
- Weatherproof suitable for small open-cockpit boats and other harsh environments
- Ignition protected for installation in engine rooms of gasoline powered boats
- Insulating cap prevents accidental shorts
- Use 5/16" or 3/8" ring terminal
Specifications
- Amperage: 300A
- Voltage: 58V
- Terminal Stud Size: 5/16"
- Studs: 1
Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Amperage
300 Amps
ISO Approved
ABYC Requirements
Mounting Hardware
Terminal Fuses (Sold Separately)
Type
Fuse Blocks
Warranty
Lifetime
