Standard DualBus 100A
Complete Your Purchase
Get your AC or DC wires in shipshape with a 5 circuit or 10 circuit terminal busbar.
This Blue Sea Systems busbar is considered the industry standard and is a great way to organize and distribute power. Either behind the breaker panel or in a locker, a bus bar can turn a spaghetti bowl of wire into something more organized and easier to troubleshoot. They can be used to distribute the power from a single breaker to several loads; examples being navigation lights or cabin light circuits. They also provide a way to connect and disconnect wires as is required to un-step a mast; a must for sailors in the Mid-West and New England. Available covers help to prevent accidental contact and possible cross current shorts. Sized to match the current loads, make sure that the bus bar you choose will handle the job, plus some room for expansion.
Features:
- Great for collection of negative or AC ground circuits
- Great for positive distribution
- Five or Ten #8-32 terminal screws on a tin-plated copper busbar secure, organize ring and maximize electrical contact
- Available insulation covers prevent accidental terminal contact and possible cross current shorts
- Reinforced polycarbonate heat resistant body
- Lifetime warranty
Specifications
- Maximum Voltage AC: 300V
- Maximum Voltage DC: 48V
- Continuous Rating AC: 100A
- Continuous Rating DC: 100A
- of terminals: 10 #8-32 screws (2702) 5 #8-32 screws (2701)
- of terminal studs: N/A
- Mounting holes: #10 screw
- Base material: Reinforced Polycarbonate
- Bus material: Tin-plated copper CDA 110/UNS 1000

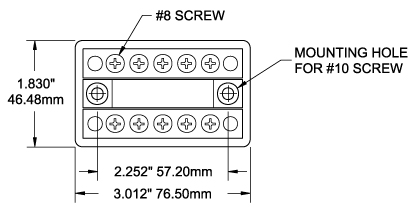

- Dimensions 2701: 3"L x 1 7/8"W
- Dimensions 2702: 5 ”L x 1 7/8” W
