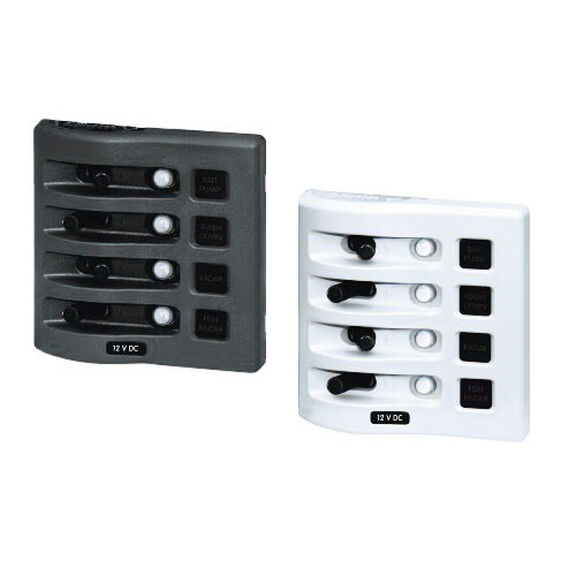

WeatherDeck™ Waterproof Breaker Panels

A rugged breaker panel that is idea for flybridge or open cockpit installations

WeatherDeck® waterproof breaker panels are ready to take on the harshest of environments. They can be oriented in any of four different ways to expand your mounting location options. Included square circuit labels are designed to be placed above or below in the horizontal configuration, and to the right or left in the vertical. Rugged UV stabilized waterproof boots. Green LEDs illuminate circuit labels to aid low light readability. Circuit reset buttons are located between switch and label for easy access.

Key Features

• Rated IP67 from the face when installed with supplied gasket
• IP67 rated for immersion in 1 meter for 30 minutes
• Ideal for flybridge and open cockpit applications
• Backlit labels (included)
• Colored LED lights indicate ON, OFF and blown fuses
• Breaker reset buttons located on face of panel for easy access
• Lifetime warranty

Specifications

• Weatherproof: waterproof
• Positions: 4, 6
• Voltage: 24V
• Panel Cumulative Rating: 45A
• Switch Rating: 15A @12V, 9A @ 24V
• Approvals: CE, IP67
• Dimensions 4374: 4 3/8"H x 4 1/4" x 3 1/2"D
• Dimensions 4376: 6"H x 4 1/4" x 3 1/2"D
