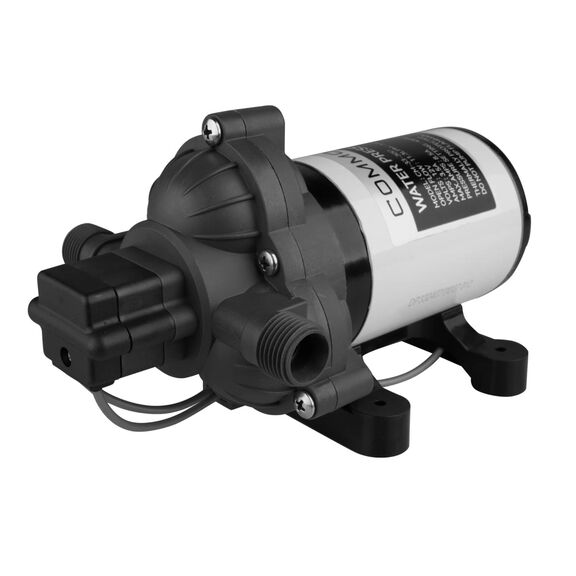

COMMODORE 3.0 GPM / 12V Diaphragm Fresh/Raw Water Pump – 45 PSI, 3-Chamber
Model #
24029118
Mfg #
M-33-30D
$179.99
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
COMMODORE 3.0 GPM / 12V Diaphragm Fresh/Raw Water Pump – 45 PSI, 3-Chamber
Model #
24029118
Mfg #
M-33-30D
$179.99
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
Quantity not available. Please adjust.
−
+
Complete Your Purchase
COMMODORE 3.0 GPM / 12V Diaphragm Fresh/Raw Water Pump – 45 PSI, 3-Chamber
The COMMODORE CM-33-30D 3.0 GPM 12V Diaphragm Water Pump features a 3-chamber design engineered for freshwater or raw-water supply, small washdown systems, and multi-fixture delivery. It delivers a steady 3.0 GPM flow with a 45 PSI shutoff and includes ½"-14 MNPT threaded ports for standard marine and RV plumbing compatibility. The pump offers quiet operation, 6 ft self-priming capability, run-dry protection, an integrated check valve, and waterproof motor sealing. Quick-connect wiring and standard threaded fittings simplify installation and servicing, making it ideal for light-to-medium duty onboard water systems.
Key Features
- 3-chamber diaphragm design delivers smooth 3.0 GPM flow at 45 PSI
- Includes ½"-14 MNPT threaded inlet/outlet ports for standard plumbing compatibility
- Self-primes up to 6 feet for flexible installation options
- Quiet-running motor with integrated check valve and run-dry protection
- Quick-connect wiring simplifies installation and pump servicing
Activation Method
Automatic
Amperage
6.74A
Best Use
Freshwater and raw water supply, washdown, and transfer systems
Capacity
3.0 GPM
Diameter
1/2"-14 FNPT x 1/2" Barb
ISO Approved
RoHS, SGS, ISO Certified
Material
Plastic, Stainless Steel
Shape
Round
Type
Electric Components
Voltage
12V DC
