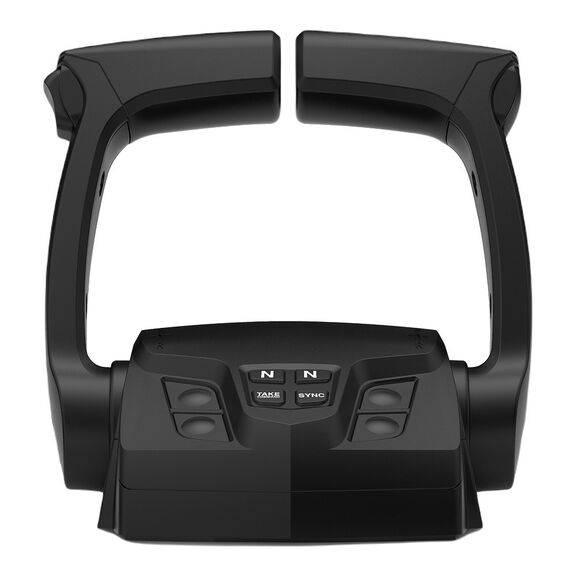

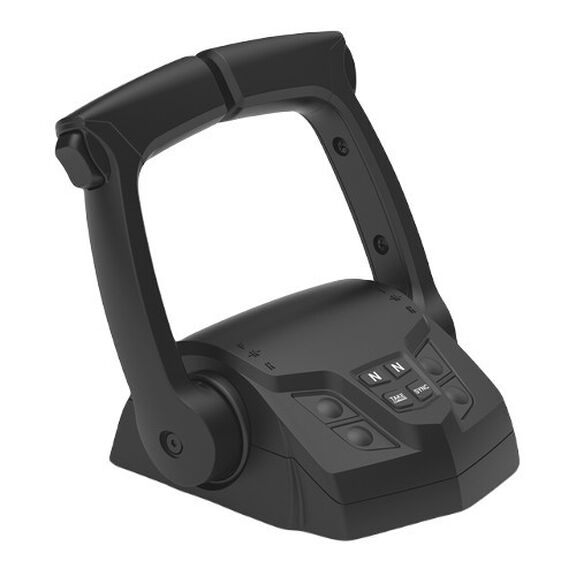

Dometic SeaStar i7852-BE Single Station Dual Engine Electronic Control Kit - Black w/ Black Lever Trim Button

Dometic SeaStar i7852-BE Single Station Dual Engine Electronic Control Kit - Black w/ Black Lever Trim Button

The Dometic SeaStar i7852-BE electronic engine control kit brings together decades of mechanical engine control expertise and cutting-edge electronics to deliver a system that enhances performance and comfort on virtually any boat and engine combination. Designed for single station, dual engine applications, this kit ships complete with all components required for a full base installation, including dual i7700 universal actuators, a dual top mount control head kit with trim in an all-black finish, CAN bus harnesses, and NMEA communication hardware.

The system communicates over an automotive-grade high-speed CAN network operating at 250 kbps, with all actuators linked to the control head via a single 1/4" (6mm) CANbus cable. A dual redundant position sensing system monitors all moving components, while low-backlash position control ensures precise, repeatable actuation. The i7700 actuator integrates both shift and throttle functions within a single compact housing, minimizing installation complexity.

For added peace of mind on the water, a mechanical override "get home" feature allows for manual control of shift and throttle if needed. The integrated neutral start protection (NSP) switch prevents accidental engine starts out of neutral, and a neutral warm-up mode lets engines reach operating temperature safely. Engine RPM synchronization enables single lever cruise control across both engines, while a user-settable trolling mode increases throttle resolution for more precise low-speed maneuvering.

The control lever features adjustable drag and detent settings for a personalized feel. Additional stations can be added — up to a maximum of three — using separately available add-a-station kits. The system requires setup tool EPSK1207 for installation and is compatible with SeaStar Xtreme family control cables (CCX633XX series).

Key Features

• Single station, dual engine configuration
• Black housing with black lever and trim button
• Trolling mode for increased throttle resolution and improved low-speed control
• Engine RPM synchronization for single lever cruise speed operation
• Mechanical override "get home" feature for emergency manual control
• Neutral warm-up and integrated neutral start protection (NSP) switch
• Adjustable control lever drag and detent settings
• Dual redundant position sensing on all moving components
• Low backlash position control and programmable cable travel and home position
• CAN bus architecture via single 1/4" (6mm) cable
• Supports up to 3 stations (add-a-station kits sold separately)
• Meets ABYC P-24, CE, EN 60945
• 2-year limited warranty from Dometic
