DLx-P Marine Jack, Swivel, 1,500 lb.

DUTTON-LAINSON DLx-P Marine Jack, Swivel, 1,500 lb.

When hitching and unhitching loaded trailers, D-L heavy duty tongue jacks are real back savers. These easy-to-install, smooth operating jacks can be mounted in a variety of ways on various sizes of trailer tongues. They reduce the physical effort required to maneuver a loaded trailer into hitching position or removing the trailer from a vehicle. All models are made from heavy gauge steel for strength and durability. Features include:

Totally enclosed outer tube helps protect miter gears and heavy duty Acme screw from sand and dirt
Fits square tongues up to 3" x 5"
2-1/2" diameter mounting hole in swivel bracket fits most other brands of mounting hardware
Floating miter gears allow for proper clearance and easier operation
Tough polypropylene wheels or zinc plated foot
Swivel jacks also offer these easy-to-use features:

Easily pivots between horizontal towing and vertical operating positions
Reduce cranking to a minimum when disconnecting from towing vehicle
Locking mechanism is spring loaded.

Dutton-Lainson® swivel marine tongue jack for boat and other trailer applications
1,500 lb. capacity
12" total travel
28-1/2" maximum tongue height
Side wind handle with extra heavy screw drive and ergonomic handle grip
Heavy duty polypropylene 8" diameter (3" wide) slotted wheel resists flat spots and cold weather cracking
Easily swivels up for towing or down for stowing and locks in place in either position
Independent wheel (wheel bracket rotates independent from inner post) for maximum surface area and maneuverability over rough terrain like sand or gravel
Reinforced wheel bracket for additional strength
U.S. patent D870598
Includes all necessary bolt-on mounting hardware
Made in the U.S.A.
In addition to the standard D-L® marine jack features listed above, the DLx-P marine jack also offers this set of exclusive features.

Key Features

• Inner tube, outer tube, wheel bracket, and mounting plate have powder coated matte black finish over zinc plating
• Dual grease fittings keep interior parts fully lubricated
• Vinyl sleeve on 1/2" swivel pin makes swiveling more comfortable
• Bushing between tubes prevents scratching and tightens fit
• Premium cushioned handle grip is softer and more comfortable
• Unique top cap mounts over outer tube and is held in place with a screw
• Premium handle cover

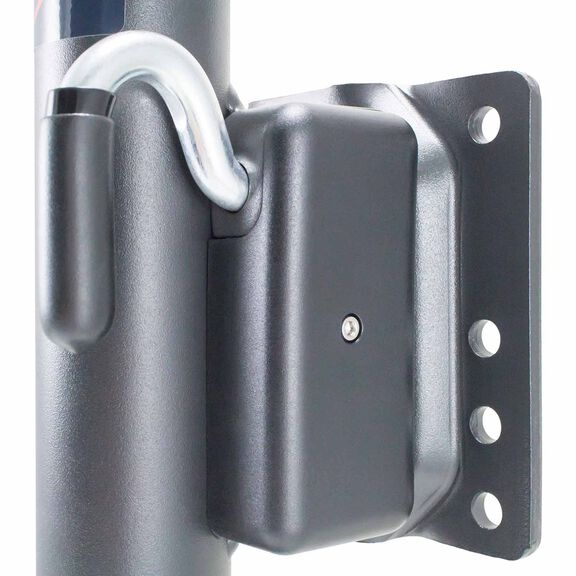

• Unique swivel bracket cover protects swivel parts and enhances look
