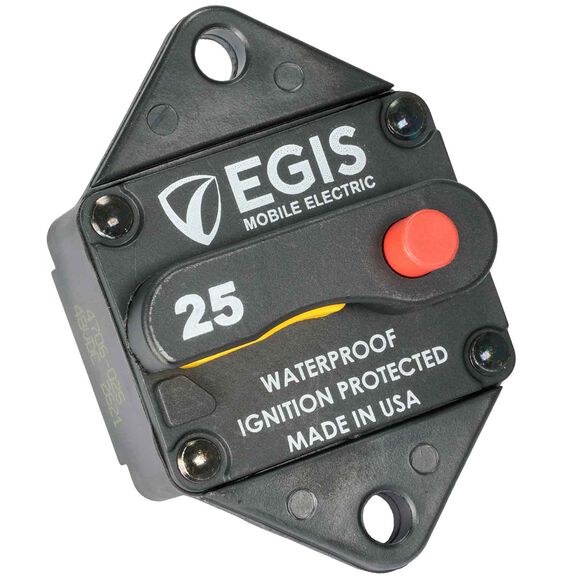

EGIS MOBILE ELECTRIC Panel Mount Circuit Breaker
The EGIS Mobile 285 Series Circuits protect electrical circuits from short circuits and thermal overloads while providing robust manual circuit switching for reliable live load switching. The sealed cases keep your circuit protection safe from the environment and High voltage, with circuit-interrupt current capability that protects circuits connected to large series- or parallel-connected battery banks.
Features:
- Sealed Against Dust and Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation
- Easily supports 12 and 24 VDC applications while offering advanced protection for 36 & 48 VDC
- High electrical/Manual Switching endurance delivers 6,000 cycles at full current
- High interrupt current safely protects circuits connected to large paralleled Battery Banks with significant available power
- Allows for circuit isolation and maintenance of load circuits by providing convenient switching and integral circuit protection capable of mounting adjacent to battery systems, regardless of the location
- Mounting Type: Panel
- Max Voltage: 48Vdc
- Short Circuit Interrupt Rating: 3,000 Amps at 14Vdc
- Short Circuit Interrupt Rating: 1,500 Amps at 48Vdc
- Hardware Material: 18-8 Stainless Steel
- Terminal Stud Size: 1/4"-28
- Ingress Protection: IP67
- Max Operating Temperature: 85°C (185°F)
- Min Operating Temperature: -40°C (-40°F)
- Ignition Protection: SAE J1171
- Mechanical Vibration: 10g
- Mechanical Shock: 100g
ISO Approved
IP67 and IP69K Rated
Mounting Hardware
Sold Separately
Type
Breakers
Warranty
Four Years
