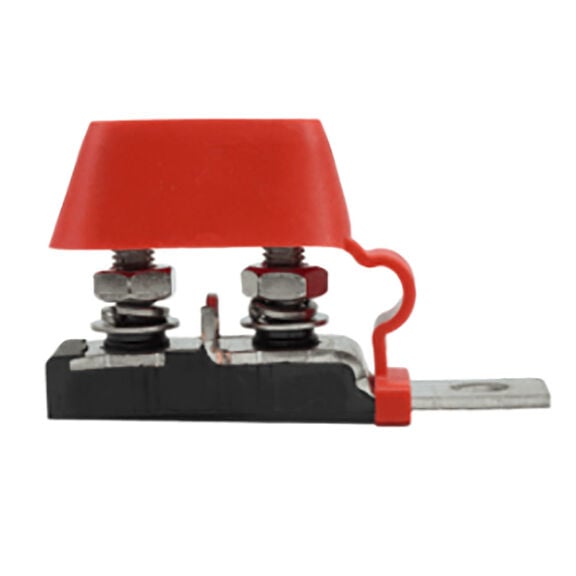

MRBF Terminal Block Dual Output

Egis Mobile Electric MRBF Terminal Block Dual Output

The Egis Mobile Electric MRBF Terminal Block Dual Output provides dependable, ignition-protected circuit protection specifically designed for demanding marine and vehicle electrical systems. Built to withstand the rigors of harsh environments, this terminal block safeguards electrical circuits against short circuit events and over-current loads, preventing wire insulation overheating and potential system damage. Its dual-output configuration makes it well suited for installations requiring multiple protected circuit feeds from a single mounting point.

The terminal block is rated to 58V DC, making it fully compatible with modern 12V, 24V, 36V, and 48V nominal applications. It accepts continuous current from 30 to 300 amps, offering broad flexibility across a wide range of electrical system sizes. The M8 (5/16") stud size and M10 (3/8") mounting hole simplify integration into existing or new electrical panels and distribution systems.

When used with Egis Mobile Electric MRBF fuses, the terminal block is ignition protected, making it safe for installation in closed compartments where potentially explosive gases may be present — a critical safety requirement for marine applications. Its IP66-rated sealed enclosure guards against dust and water intrusion, ensuring reliable circuit protection throughout the life of the installation. The design also incorporates shock and vibration resistance, further enhancing durability in mobile and marine environments.

Key Features

• Protects electrical circuits from short circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction
• Ignition protected when used with Egis Mobile Electric MRBF Fuses — safe for installation in closed compartments with potentially explosive gases
• Harsh environment design with shock and vibration resistance, ideal for marine and vehicle electrical systems
• IP66-sealed against dust and water intrusion to ensure reliable circuit protection for the life of the installation
• 58V DC rating easily supports 12 to 48V nominal applications
• Dual-output configuration for connecting multiple protected circuits
• Continuous current range of 30–300A for broad system compatibility
• 4-year warranty
