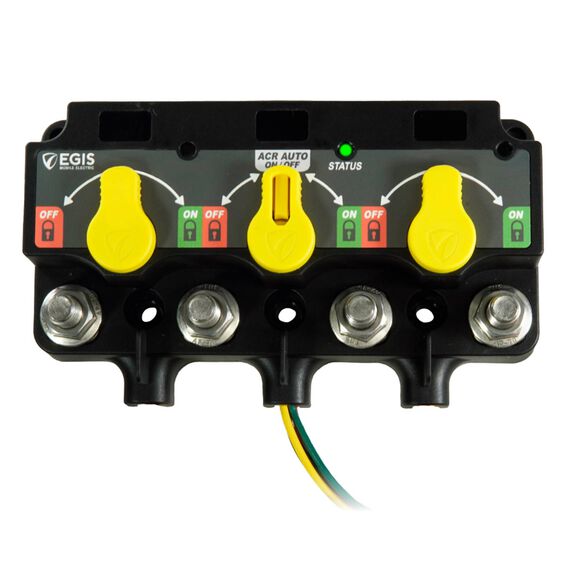

XD Flex 2 Triple - (Mech/VSR/Mech), with Knobs - Flying Wires, Retail Pack

EGIS MOBILE ELECTRIC XD Flex 2 Triple - (Mech/VSR/Mech), with Knobs - Flying Wires

Add-A-Battery provides two mechanical switches with a centralized remote/manual control VSR/ACR for battery charge management. The outer mechanical-only knobs are taller for easier operation. Utilize as a relay/battery disconnect or as a voltage-sensing charge management relay. Supports Single/Multiple Engine installations with dual-start/engine-isolation inputs.

Key Features

• Sealed to IP67/IP6K9K, high-temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware. 90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar functionality
• Intuitive Manual Control option simplifies operation and awareness of the state of manual override and whether the device is being left in a locked off or locked on state (not available on competitive solutions)
• Simple Programmability via simple dip switches allows each individual relay function significant flexibility for OEMs and installers
• 35-75% Reduction in Mounting Space & Product Weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts
• Plug & Play Compatible with Legacy Competitor Products:   Single, dual, and triple relay options available with DTM/ATM connectors, pin-for-pin compatible with ML Series Bi-stable Relays
• Input Voltage Range (Vdc) 8.0 - 36.0 Auto-Ranging
• Nominal Voltage (Vdc): 12 v - 24 v
• Over Voltage protection (Vdc): 17.0 (12v) / 34.0 (24v)
• State Change Current (20 msec) : 5.0A (12v) / 3.0A (24v)
• Standby Current (mA): 1.3 (12v) / 1.3 (24v)
• Live Current Switching - 50,000 cycles: 12V/300A / 24V/300A
• Mechanical Switching Life: 1,000,000 cycles
• Hardware Material: Stainless Steel Self-Locking
• Terminal Stud Torque: 120 in-lbs
• Ingress Protection: IP67
• Flex System Compatible with Flex interconnected busbars

Spec Sheet
