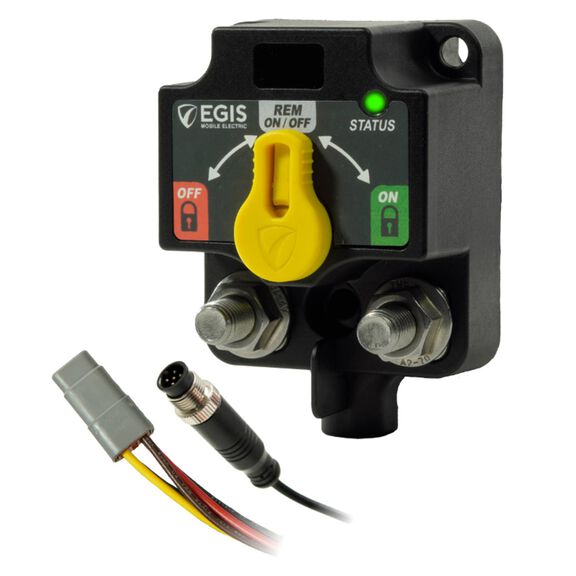

XD NMEA 2000 Single - (VSR), with Knob - 4P DT, Retail Pack

EGIS MOBILE ELECTRIC XD NMEA 2000 Single - (VSR), with Knob - 4P DT

NMEA 2000 controllable, while also responding to optional discrete remote controls. Reports switch status, status of manual override knobs, and battery voltage on input terminals to the NMEA 2000 network. Optional manual override knobs allow locking switches ON or OFF for servicing or when control power is lost. Engine Installations with Dual Start/Engine Isolation Inputs. Also has remote ON/OFF/Auto Input, allows Forced Close or Open, or allows automatic operation based on Voltage, and even includes local and Remote LED Indicators! Eliminates Dead Start Batteries by sharing charging between two batteries and isolating them when no charge sources are present. Supports Single/Multiple Engine Installations with Dual Start/Engine Isolation Inputs. Remote ON/OFF Input Allows Combining Batteries During Hard Start Events or Forcing Isolation of Batteries During Engine Starts.

Key Features

• Sealed to IP67/IP6K9K, high-temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware
• 35-75% Reduction in Mounting Space & Product Weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts
• Simple Programmability via simple dip switches allows each individual relay function significant flexibility for OEMs and installers
• Plug & Play Compatible with Legacy Competitor Products
• Made In The USA
• Input Voltage Range (Vdc) 8.0 - 36.0 Auto-Ranging
• Nominal Voltage (Vdc): 12 v - 24 v
• Over Voltage protection (Vdc): 17.0 (12v) / 34.0 (24v)
• State Change Current (20 msec) : 5.0A (12v) / 3.0A (24v)
• Standby Current (mA): 1.3 (12v) / 1.3 (24v)
• Live Current Switching - 50,000 cycles: 12V/300A / 24V/300A
• Mechanical Switching Life: 1,000,000 cycles
• Hardware Material: Stainless Steel Self-Locking
• Terminal Stud Torque: 120 in-lbs
• Ingress Protection: IP67
• Flex System Compatible with Flex interconnected busbars

Spec Sheet
