NavNet TZtouchXL TZT10X 10" Hybrid Control MFD Chartplotter/Fishfinder
Complete Your Purchase

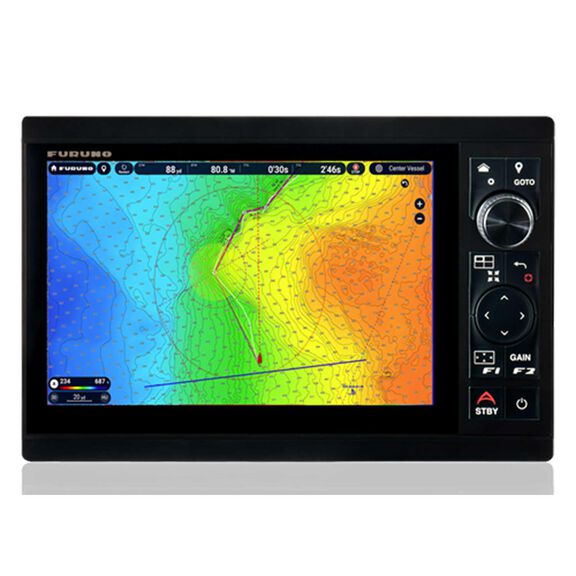

Furuno NavNet TZtouchXL TZT10X 10" Hybrid Control MFD Chartplotter/Fishfinder
The hybrid control 10" TZT10X incorporates all of NavNet TZtouchXL's multi-touch capabilities with Furuno's RotoKey™ control knob and dedicated buttons, making navigation intuitive and easy under any sea conditions. Its powerful hexacore processor ensures rapid response across all display functions.
The TZT10X incorporates a powerful internal 1kW dual-channel TruEcho CHIRP™ Fish Finder designed to operate across a wide range of frequencies. Built-in 230kHz or 455kHz CHIRP Side-Scan scans both port and starboard, illuminating the shape of the bottom structure in high definition, revealing fish targets and fish-hoarding structure on each side of the vessel.
Key Features
- 10.1-inch wide IPS LCD display with hybrid touch and RotoKey™ physical controls
- WUXGA 1920 x 1200 resolution at 900 cd/m² brightness
- Powerful hexacore processor for rapid response
- Built-in Dual Channel 1kW TruEcho CHIRP™ & CW Fish Finder
- Built-in 230kHz or 455kHz CHIRP Side-Scan Sonar
- Internal GPS antenna with 72-channel receiver and SBAS/WAAS support
- TZ MAPS with BathyVision bathymetric data at up to 3-inch contour resolution
- Purchase and update charts directly from MFD via Wi-Fi
- AI Routing for intelligent route planning around navigational obstacles
- Risk Visualizer and AI Avoidance Route when connected to NXT radar
- Compatible with Furuno X-Class and NXT Doppler Radars
- NMEA 2000 and NMEA 0183 connectivity
- 1 Gigabit Ethernet LAN port, USB 3.0, video input (NTSC/PAL), wireless LAN
- Micro SDXC card slot and dual transducer connections (12-pin CHIRP/CW + 12-pin Side-Scan)
- Edge-Swipe user interface with up to 10 custom Page Builder configurations
- IP56 waterproof rating; operates from -15°C to +55°C
- 12–24 VDC power supply, 3.8–1.9 A consumption
- Flush or tabletop (bracket) mount; includes 512GB TZ Maps Chart Card
- TZ Cloud for saving marks, routes, and settings; TZ Weather compatible (software v25+)
