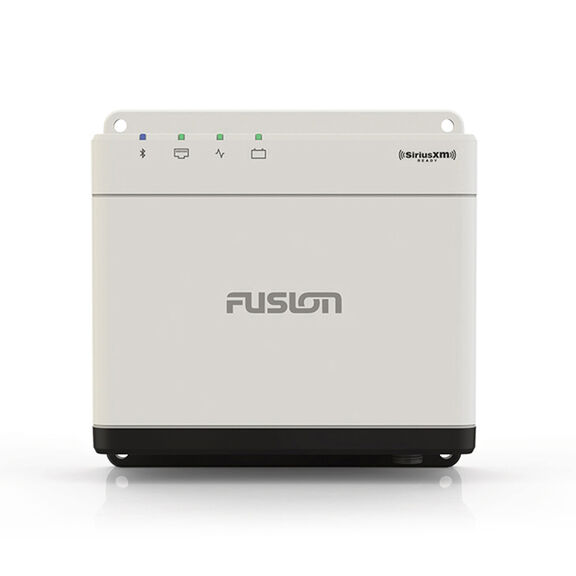

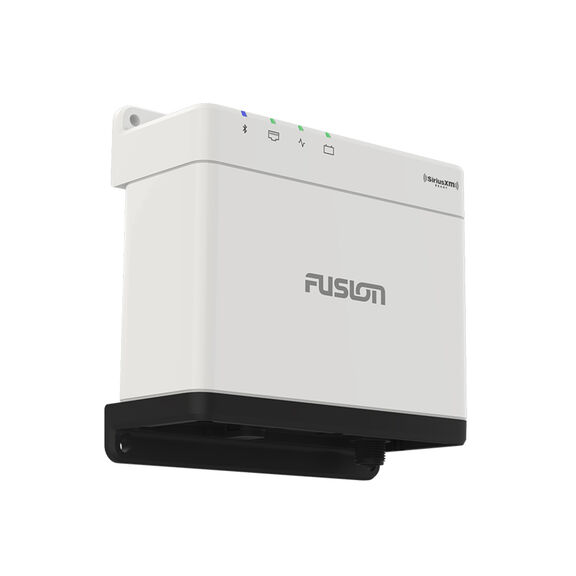

Apollo™ MS-WB670 Marine Hideaway Stereo with Built-in DSP

The Fusion® Apollo™ WB670 marine hideaway stereo embodies award-winning audio innovation in a discreet form factor that can be hidden away, simplifying dash space.

With built-in Digital Signal Processing (DSP) technology, PartyBus™-Network capabilities, Fusion-Link™ integration and advanced source options. In addition, enjoy Wi-Fi® audio streaming with Apple AirPlay® 2 and over-the-air software updates when connected to an external wireless router (sold separately).

Features:

Compact Design

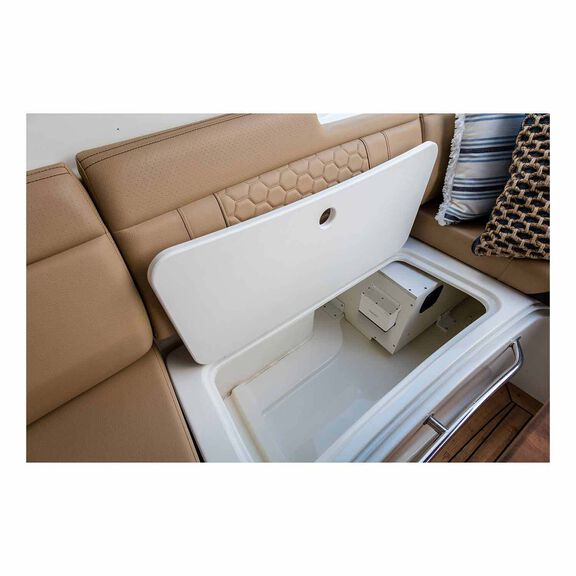

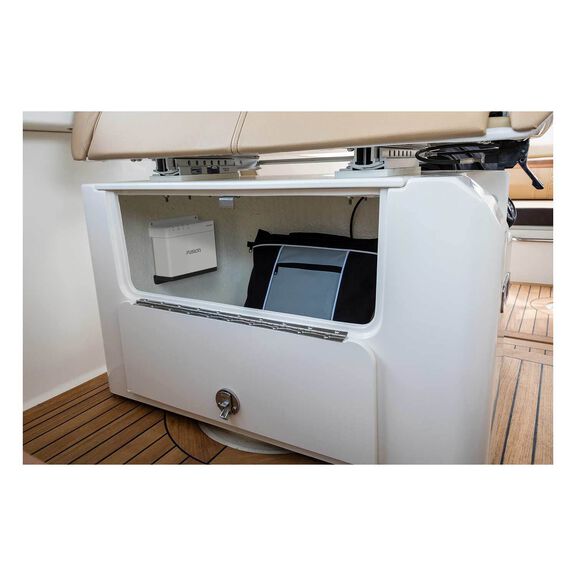

Designed to save space at the helm, the Apollo™ WB670 can be hidden away in the dash or mounted in a variety of areas such as storage lockers, inside helm consoles and other concealed compartments.

Multiple Control Options
Designed to work seamlessly with compatible Garmin multifunction displays (MFDs) or Apollo™ ERX400 wired remotes via an Ethernet connection, to simplify dash space.

Built-in Digital Signal Processing (DSP)
A technically superior listening experience made simple, DSP optimizes the audio signal for superior sound quality in every listening environment. Custom audio profiles (including speaker, subwoofer, amplifier and environment) can be setup for each zone on your boat using the Fusion-Link™ app on your compatible smart device.

PartyBus™-Network Technology
Enjoy the freedom of musical choice across the entire boat by connecting multiple Apollo™ Series stereos together using Ethernet. An intuitive user experience allows you to control stereo grouping (play the same audio source across multiple stereos in sync), volume, power options and more.

Gain Wi-Fi® Capabilities
Enjoy seamless Wi-Fi® audio streaming with Apple AirPlay® 2 and the convenience of over-the-air software updates when connected via Ethernet to an external wireless network router (sold separately), Garmin MFD or Apollo™ Series stereo network enabled with Wi-Fi technology.

Fusion-Link™
A widely adopted protocol for on-water audio integration and control. Allows you to control your audio from a compatible multifunction display (MFD), smart device or Garmin watch.

Multi-Zone™ Technology
Up to three independent audio zones are available for a customized listening experience across your boat, each with advanced localized audio options, including volume limits, zone naming, disabling zones and more. (Note: Subwoofer and full range line outs require additional amplification.)

Advanced Source Options
Take advantage of the many source options available including Apple AirPlay 2®, BLUETOOTH®, Universal Plug and Play (UPnP), optical audio, advanced SiriusXM® features, DAB+ radio, AM/FM radio, AUX and USB connections.

True-Marine™ Design
The Apollo™ WB670 has been tested to a high level of protection against salt fog, temperature, vibration and UV. Designed to last season after season, the WB670 comes with a 3-year warranty.

Specifications:

Stereo Dimensions (H x W x D): 5.1" x 5.1" x 2.17" (130 x 130 x 55  mm)
Weight: 16.75 oz (475 g)
Power input: 10.8-16 VDC
Operating temperature range: 32° to 122° F (0° to 50° C)
Current (max.): 15 A
NMEA 2000 LEN: 1 (50 mA)
Bluetooth wireless range: Up to 30 ft. (10 m)
ANT wireless range: Up to 10 ft. (3 m)
Wireless frequencies/protocols: Bluetooth 2.4 GHz @ +12 dBm nominal / ANT 2.4 GHz @ +7 dBm nominal
Compass-safe distance: 5.9" (150 mm)

Built-in amplifier: Class-D (2 Ohm stereo-stable)
Peak power: 280 W
Rated power output (2 Ohm): 43 W rms x 4 @ 14.4 V input < 10% THD
Rated power output (4 Ohm): 26 W rms x 4 @ 14.4 V input < 10% THD
Built-in Digital Signal Processing: Yes (with preconfigured DSP profiles)
PartyBus™-Network capabilities: Yes (wired)
Fusion-Link™ control: Yes (with MFD, smartphone and Garmin watch)
Multi-Zone™ technology: 3 zones
Built-in Wi-Fi: No
Bluetooth wireless technology: Yes
ANT wireless technology: Yes
SiriusXM-ready: Yes (requires SiriusXM Connect vehicle tuner)
DAB+ ready: Yes (requires DAB100A antenna module)
Optical audio input: Yes
NRX remote compatibility: Yes
Software updates: Over-the-air software updates via the Fusion-Link app (when connected to wireless network router), USB
Warranty: 3 years

Sources: AM / FM / Bluetooth / Apple AirPlay 2 / digital optical input / USB audio / iPhone / iPod / AUX x1 / UPnP / MTP / SiriusXM-Ready (USA only, requires optional SiriusXM Connect vehicle tuner) / DAB+ ready (available in Europe and Australia only)

Auxiliary input: One RCA input (AUX)
Optical audio input: One digital optical input (SPDIF) port
Ethernet: One Ethernet port
NMEA 2000: One NMEA 2000 port
USB 2.0: One USB 2.0 port
SiriusXM satellite radio: One SiriusXM port (requires SiriusXM Connect vehicle tuner, does not support traffic and weather)
AM/FM radio: One Motorola antenna connector port
Speaker: 4 x speaker connections (2 zone amplified)
RCA Pre-out (left, right and subwoofer): 3 zones (requires external amplification)
Line out: 3 (1 x L + R per zone, requires external amplification)
Subwoofer out: 3 (1 x mono output per zone; requires external amplification)
