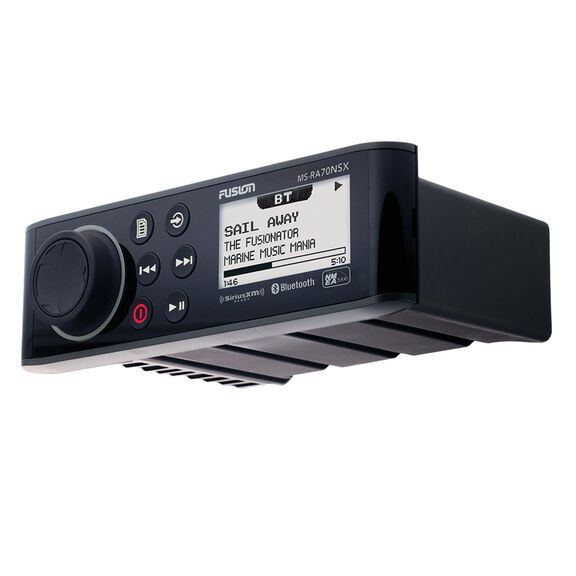

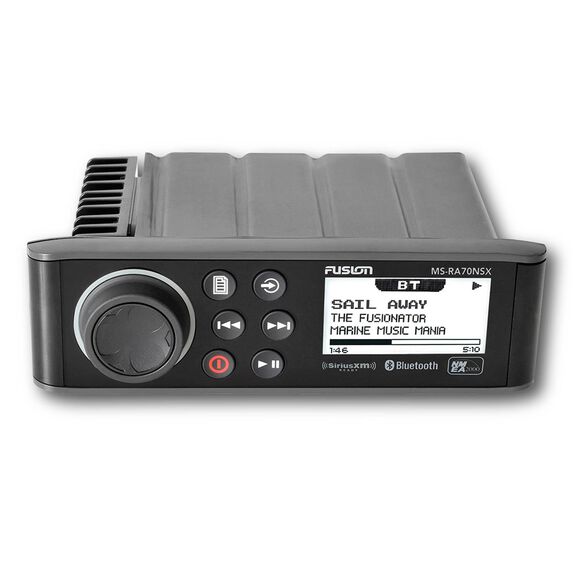

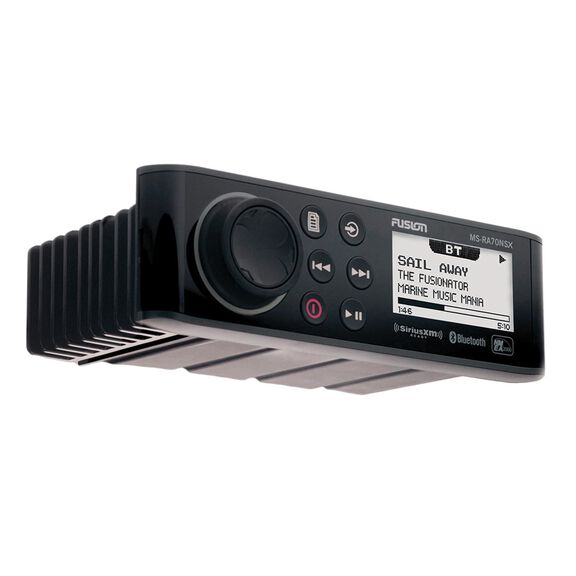

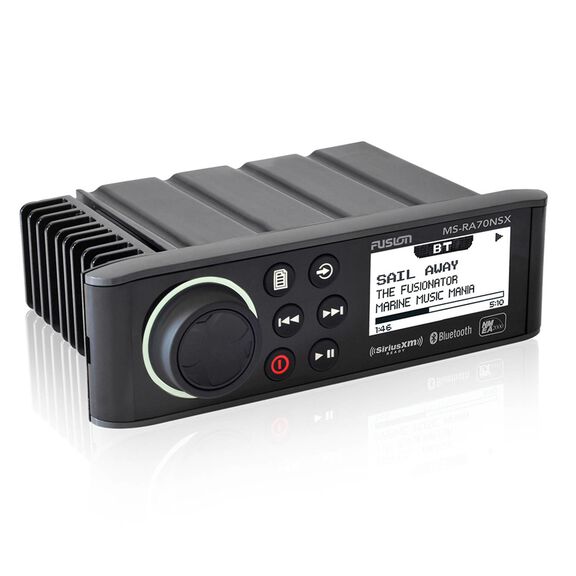

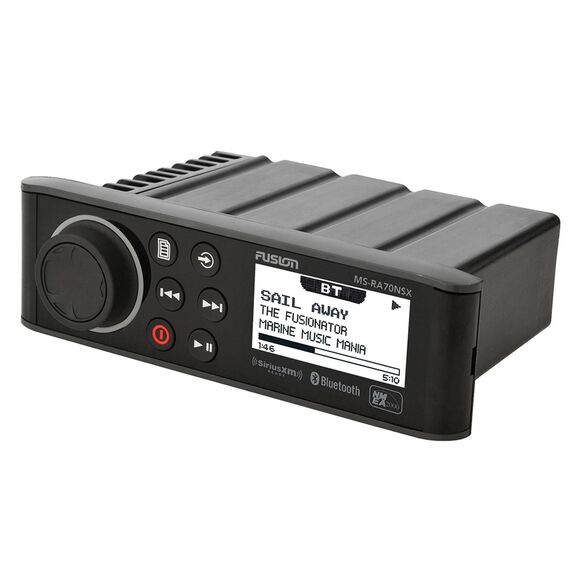

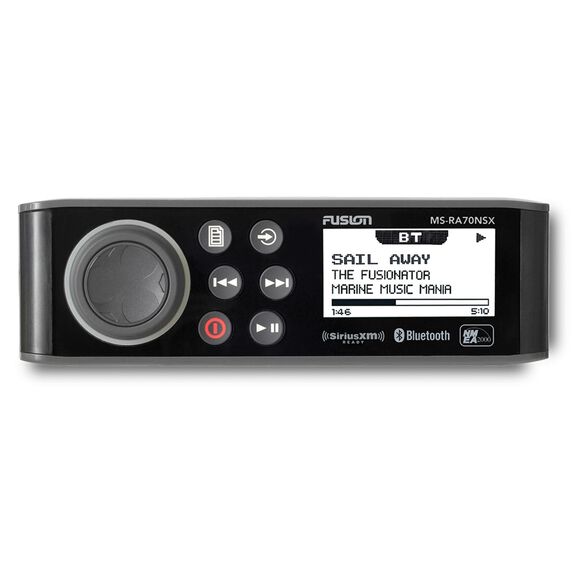

MS-RA70NSX Marine Stereo with NMEA 2000® and SiriusXM

The Fusion® MS-RA70NSX is a DIN-sized marine stereo with NMEA 2000® and SiriusXM capability, designed to deliver a quality audio entertainment experience on the water. Designed to be retrofittable in existing DIN-sized cutouts without needing to reconfigure dash space, the MS-RA70NSX is a simple addition to your helm.

Features:

DIN-sized Design
Seamlessly retrofittable in existing DIN-sized cutouts without needing to reconfigure dash space, simplifies installation.

Optically Bonded LCD Display
Bright 2.6" optically bonded monochrome LCD improves visibility and displays track information.

Fusion-Link™
A widely adopted protocol for on-water audio integration and control. Allows you to control your audio from a compatible multifunction display (MFD), smart device or Garmin watch.

Multi-Zone™ Technology
Up to two independent audio zones are available for a customized listening experience across your boat, each with advanced localized audio options, including volume limits, zone naming and more. (Note: Subwoofer and full range line outs require additional amplification.)

Multiple Source Options
Take advantage of the many source options available including BLUETOOTH®, advanced SiriusXM® features, AM/FM radio, AUX and USB connections.

Ingress Protection
The MS-RA70NSX has an IPX7 water-resistant front panel and comes with a 1-year warranty.

Specifications:

Physical dimensions (HxWxD): 2.36" x 7.40" x 4.87" (60 x 188 x 123.5 mm)
Weight: 19.6 oz (556 g)
Water rating: IPX7 (front panel only, when properly installed)
Power input: 10.8-16 VDC
Operating temperature range: 32° to 122° F (0° to 50° C)
Current (max): 15 A
NMEA 2000 LEN: 1 (50 mA)
Bluetooth wireless range: Up to 30 ft (10 m)
ANT wireless range: Up to 10 ft (3 m)
Wireless frequencies/protocols: Bluetooth 2.4 GHz @ +1.9 dBm nominal / ANT 2.4 GHz @ +1.9 dBm nominal
Compass-safe distance: 5.9" (150 mm)

Display: 128 x 64 optically bonded monochrome LCD
Built-in amplifier: Class-AB
Peak power: 200 W
Rated power output (4 Ohm): 26 W rms x 4 @ 14.4 V input < 10% THD
Fusion-Link™ control: yes (MFD, smartphone and Garmin watch)
Multi-Zone™ technology: 2 zones
Bluetooth wireless technology: yes
ANT wireless technology: yes
SiriusXM-ready: yes (requires SiriusXM Connect vehicle tuner)
NRX remote compatibility: yes
Multi-language interface: Dutch / English / French / German / Italian / Spanish
Fits DIN-sized cutout: yes
Software updates: USB
Warranty: 1 year

Sources: AM / FM / Bluetooth / USB audio / iPhone / iPod / AUX x1 / AOA / SiriusXM-Ready (U.S. only, requires optional SiriusXM Connect vehicle tuner)

Auxiliary input: One RCA input (AUX)
NMEA 2000: 1 port
USB 2.0: 1 port
SiriusXM satellite radio: 1 port (requires SiriusXM Connect vehicle tuner, does not support traffic and weather)
AM/FM radio: 1 Motorola antenna connector port
Speaker: 2 x speaker connections (2 zone amplified)
RCA Pre-out (left, right and subwoofer): 2 zones (requires external amplification)
Line out: 2 (1 x L + R per zone, requires external amplification)
Subwoofer out: 1 x mono output (requires external amplification)
