B175 High Wide CHIRP, 1kW, 0° Tilted Element™, M&M Transducer, DT
Complete Your Purchase

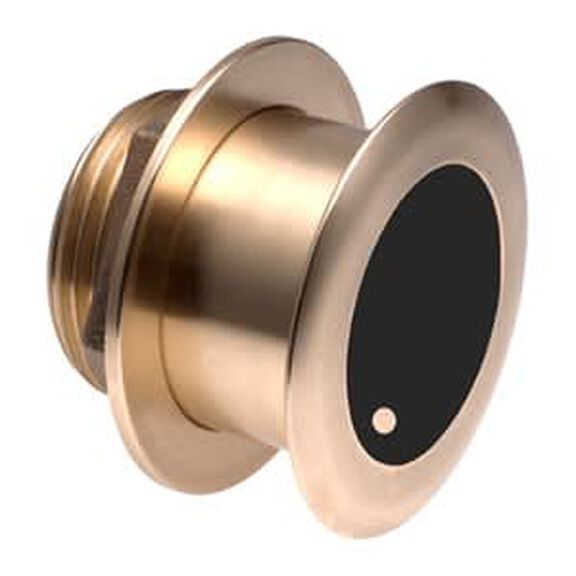

Garmin AIRMAR® B175HW
The AIRMAR B175HW flush-mount through-hull transducer brings 1 kW of sonar power to fiberglass and wood hulls without the complexity of a fairing block. Its unique internal tilted element design compensates for hull deadrise angles across the full spectrum, eliminating the need for additional mounting hardware while keeping the bronze housing protruding less than 1/4-inch below the hull surface. This low-profile installation means the transducer can safely rest on trailer rollers or bunks without risk of damage during trailering.
Operating across a CHIRP 150–250 kHz frequency range in the High Wide (HW) CHIRP band, the B175HW delivers outstanding target separation and bottom definition. With a 25° beamwidth and a maximum depth capability of 500 feet, it is well suited for a variety of fishing and navigation applications in coastal and offshore environments. The transducer measures both depth and water temperature, providing essential data for fishfinders and chartplotters.
Installation is straightforward with the included 30-foot, 8-pin cable and comprehensive installation instructions. The supported deadrise and tilt angle combinations ensure that the correct tilt variant can be selected to achieve an optimal perpendicular sonar beam regardless of hull geometry. Three tilt variants — 0°, 12°, and 20° — cover deadrise angles from flat-bottomed hulls up to 24°.
Key Features
- 1 kW output power — no fairing block required
- CHIRP 150–250 kHz HW CHIRP frequency range for superior target separation
- 25° beamwidth with 500 ft. maximum depth capability
- Flush-mount bronze housing protrudes less than 1/4-inch below the hull
- Internal tilted element accommodates all hull deadrise angles
- Safe to rest on trailer rollers or bunks without damage
- Measures depth and water temperature
- 30 ft. cable with 8-pin connector
- Compatible with fiberglass and wood hulls
- Available in 0°, 12°, and 20° tilt configurations
- Includes installation instructions
