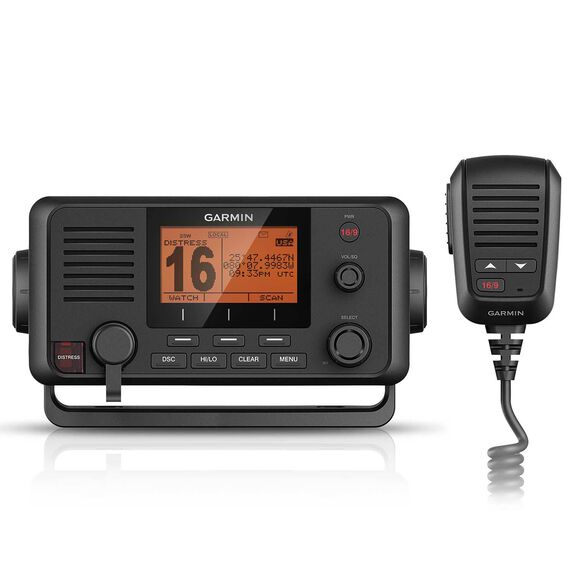

VHF 210 AIS Marine Radio with AIS Receiver
Communication and situational awareness are critical on the water, so Garmin added an AIS receiver to this radio.
The VHF 210 AIS radio displays AIS on the compatible chartplotter to enhance communication, situational awareness and collision avoidance between you and other mariners worldwide. Plug-and-play NMEA 2000 networking plus the integrated AIS receiver make installing the radio simple. Two-way hailer for onboard communication.
Increase your peace of mind: During an emergency situation, the 25 watt transmit power of the VHF 210 AIS gives all fishermen, sailors and cruisers confidence at their fingertips.
Communicate confidently on the water: Easy to install and use, just plug and play via the NMEA 2000 network to compatible Garmin chartplotters and multi-function displays. Provides standard Class D DSC functionality (distress calling and direct calling with user programmed MMSI). Includes frequency bands for all U.S., Canadian and international marine channels and 10 NOAA weather channels. Also NMEA 0183 compatible and includes 2-way hailer system for onboard communication
Communicate with style: Because your helm is a source of pride, the VHF 210 AIS marine radio is designed to complement the appearance of GPSMAP 7x2/9x2, GPMAP 10x2/12x2, GPSMAP 7400/7600 and GPSMAP 8400/8600 chartplotters and multi-function displays.
Key Features
- Displays Automatic Identification System (AIS) on the chartplotter
- Standard Class D Digital Selective Calling (DSC) functionality (distress calling and direct calling with user programmed MMSI)
- In case of trouble, DSC may improve your chances of a rapid rescue
Specifications
- Channel Selection: Up/down knob
- Controls: Multi-function dial, six keys: 16/9, Hi/Lo, Clear, Menu, DSC, Vol/Sq.
- Mic Controls: Channel up/down buttons
- Display Type: Dot matrix LCD
- Weather Alert: Yes
- Receiver Performance: Sensitivity: 0.28µV; Rejection: 70db
- Dimensions: 7 13/16"W x 3 7/8"H x 5 13/16"D
- NMEA Interface: NMEA 0183, NMEA 2000
- Amperage: Standby: 350mA, Receive: 600mA, Transmit: 6.0A at Hi power, 2.0A at Lo power
- Waterproof Rating: IPX7
- Warranty: One year
What's in the Box
- VHF 210 AIS marine radio
- Removable fist mic
- Fist mic mounting bracket and hardware
- Bail mount with knobs and mounting hardware
- Protective cover
- Trim ring snap cover
- Flush mount gasket
- Power cable
- Documentation
