27mm Low-Beam Pinstop Track — 6', 4" Hole Spacing, 2 Pinstop Holes

Harken 27mm Low-Beam Pinstop Track — 6', 4" Hole Spacing, 2 Pinstop Holes

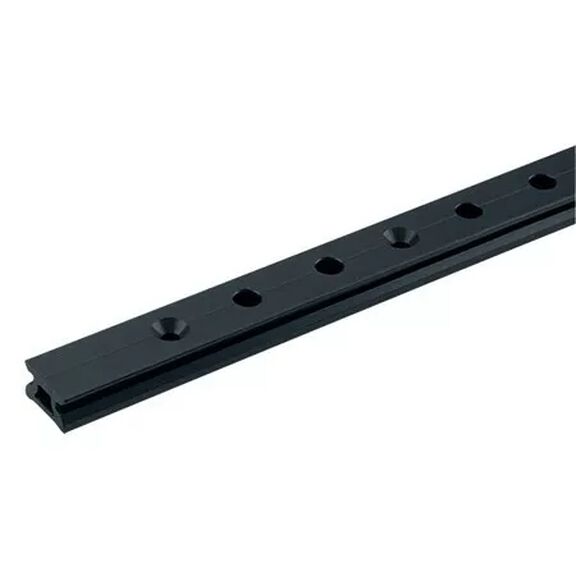

The Harken 27mm Low-Beam Pinstop Track (Part No. 1605.6) is a high-quality traveler track engineered for midrange sailing systems. Measuring 6 feet (1.83 m) in length, it is machined from 6061-T6 aluminum and finished with a hardcoat anodizing process that provides outstanding resistance to corrosion and wear, making it well suited for demanding marine environments.

The track features two pinstop holes positioned between each mounting fastener, allowing traveler cars to be locked at precise, repeatable positions along the length of the track. This pinstop design gives sailors accurate control over car placement, improving trimming efficiency for mainsheet travelers or genoa lead applications. Mounting holes are evenly spaced at 4-inch (102 mm) intervals, with the first hole set 2 inches (51 mm) from the end of the track. Flat-head fasteners in 6 mm (1/4") diameter are used for a flush, low-profile installation.

The 27mm Low-Beam Pinstop Track weighs 40.3 oz (1.14 kg), keeping added weight to a minimum. It is designed to work with compatible Harken accessories, including endstops 1522, E2700, and 1606, trim cap 1622, and splice link 1619, enabling straightforward integration into new or existing 27mm midrange traveler systems.

Key Features

• 6061-T6 aluminum construction with hardcoat anodized finish for corrosion resistance
• 6-foot (1.83 m) track length for midrange traveler applications
• Two pinstop holes between each fastener for precise car positioning
• 4-inch (102 mm) mounting hole spacing with first hole at 2 inches (51 mm) from end
• 6 mm / 1/4" flat-head fastener size
• Compatible with Harken endstops 1522/E2700/1606, trim cap 1622, and splice link 1619
• Lightweight at 40.3 oz (1.14 kg)
• Part of the 27 mm Midrange CB Traveler Track system
