30 Plain-Top Performa™ Winch — AL/2 Speed
Model #
24115917
Mfg #
30.2PTP
$1,339.99
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
Quantity not available. Please adjust.
−
+
Complete Your Purchase

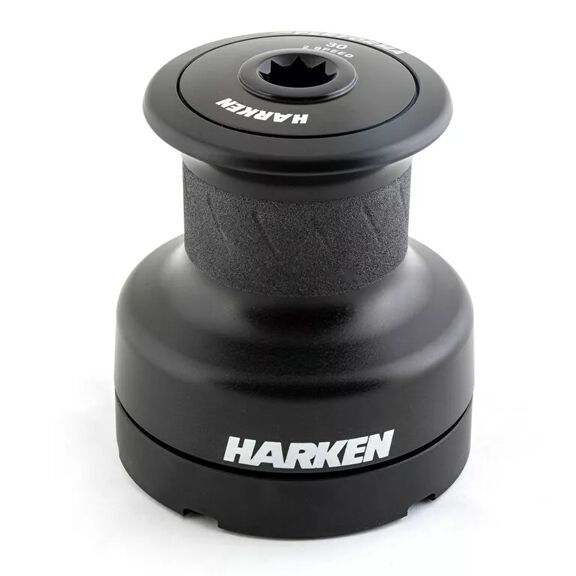

HARKEN 30 Plain-Top Performa™ Winch — AL/2 Speed
The new Performa 30.2 plain top winch is Harken's smallest two-speed winch. It was originally designed to meet the power requirements of the increasingly powerful Mini Transat 6.5 fleet. This version replaces the 32.2A winches which relied on previous generation engineering aboard boats like the J80.
Key Features
- Configuration: Plain-top (no handle mount base)
- Dual-speed operation with first speed power ratio of 7.8:1 and second speed power ratio of 29.8:1
- Compact aluminum construction with chrome plating and anodized components
- Accepts line diameters from 6 mm to 10 mm
- Drum diameter 73 mm (2 7/8 inches)
- Base diameter 120 mm (4 3/4 inches)
- Five M6 stainless steel fasteners on 100 mm fastener circle
- Designed for high-performance racing and modern fleet racing applications
The winch features precise engineering with gear ratios of 1.1:1 (first speed) and 4.25:1 (second speed), delivering both power and speed when needed. Regular maintenance with Harken Grease and Pawl Oil ensures long service life. Installation requires an 8° sheet entry angle (±2° tolerance) for optimal performance.
Diameter
73 mm
Fastener Type
M6 Stainless Steel
Line Diameter
6 mm
,
10 mm
Material
Aluminum
,
Chrome plated
,
Anodized
Mount Type
Deck-mounted
Outside Diameter
120 mm
Type
Winches
Weight
2.3 kg
