40mm Carbo Air® Single Block

40mm Carbo Air® Single Block

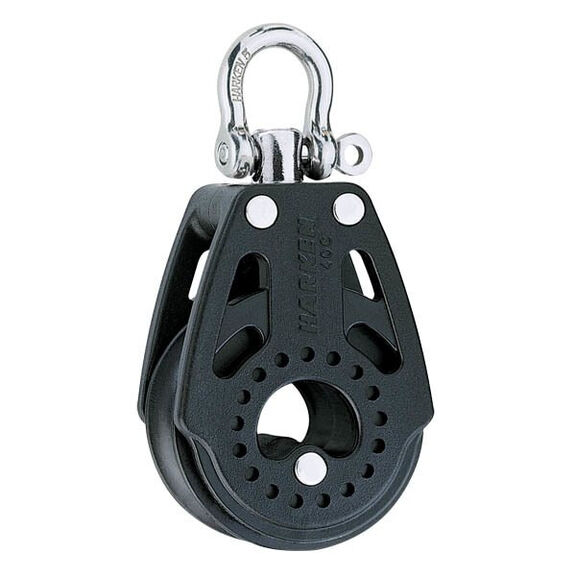

The Harken 40mm Carbo Air Block with Swivel delivers smooth, efficient line control in an ultra-light, durable package that is roughly 30% lighter and 60% stronger than comparable Classic blocks. The open Air Block design eliminates excess material, while nylon-resin sideplates densely packed with long-glass fibers provide a compact body with a high strength-to-weight ratio. The sheave runs on high-load ball bearings in fitted races for low-friction performance, and a patented swivel shackle lets the block orient to the load and keeps line from twisting. All ball bearings, the sheave, and sideplates are UV-stabilized with carbon black for lasting protection.

Designed as a companion to Harken's popular Big Boat block range, this Carbo Air block punches well above its weight class, providing very high working loads for safe, easy trimming. It is well suited to jib and mainsheet systems on high-performance dinghies and loaded control lines on small keelboats, and also serves vangs, cunninghams, and outhauls.

Key Features

• Low-friction Carbo Air design for smooth, reliable line handling

• 30% lighter and 60% stronger than comparable Classic blocks

• Nylon-resin sideplates densely packed with long-glass fibers for a high strength-to-weight ratio

• High-load ball bearings in fitted races for low-friction performance

• Patented swivel shackle reduces line twist and orients to load

• UV-stabilized ball bearings, sheave, and sideplates for lasting protection

• 40mm (1-9/16 in) sheave accommodates lines up to 10mm (3/8 in)

• Maximum working load of 220 kg (485 lb)

• Breaking load of 735 kg (1620 lb)

• 4mm (5/32 in) shackle pin

• Compact 86mm (3-3/8 in) overall length; 44 g (1.6 oz) total weight

• Ideal for jib/mainsheet systems, vangs, cunninghams, outhauls, and loaded control lines
