6mm Stamped Shackle
Complete Your Purchase

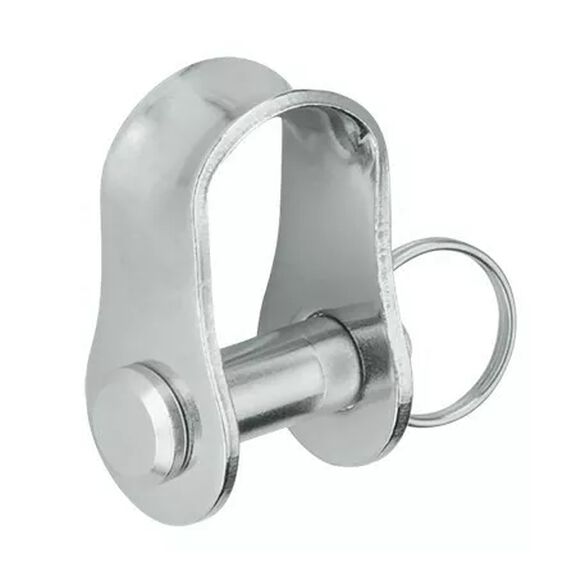

Harken 6mm Stamped Shackle
The Harken 2761 is a stamped shackle engineered for small boat blocks and light-duty rigging connections. Its compact design and low weight make it well suited for dinghy sailing and other low-load applications where a dependable, easy-to-use shackle is needed. The 6mm pin diameter and stamped construction keep overall weight minimal, while still providing a maximum working load of 680 kg (1,500 lb) and a breaking load of 1,361 kg (3,000 lb).
Stamped shackles like the 2761 are commonly found on a wide range of Harken small boat blocks, serving as the standard connection hardware across the Harken dinghy and small keelboat product range. They are appropriate for lighter rigging tasks such as attaching blocks, fairleads, and other deck fittings where loads remain within the shackle's rated capacity. For higher-load applications, Harken recommends selecting forged or high-resistance shackles from their broader hardware range.
Key Features
- Stamped construction for lightweight, low-load applications
- 6mm (1/4 in) shackle pin diameter
- Maximum working load: 680 kg / 1,500 lb
- Breaking load: 1,361 kg / 3,000 lb
- Weight: 12.7 g / 0.45 oz
- Dimension A: 15 mm / 5/8 in
- Dimension B: 14 mm / 9/16 in
- Country of origin: United States
- Compatible with most Harken small boat blocks
