Radial Self-Tailing Winch 46 — 2 Speed
Model #
24114688
Mfg #
46.2STBBB
$2,349.00
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
Quantity not available. Please adjust.
−
+
Complete Your Purchase

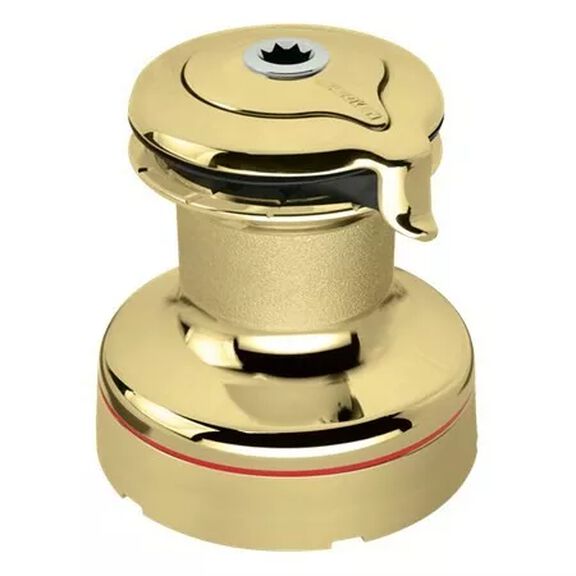

HARKEN YACHT FITTINGS Radial Self-Tailing Winch 46 — 2 Speed
The Harken Radial Line winches have successfully balanced the need for a secure grip and line longevity with smooth, controlled easing while under load. The self-tailing mechanism on the winch means that one crew member can quickly and easily trim or raise sails with efficiency and control.
Designed for modern sailing, this two-speed radial winch delivers exceptional power and mechanical advantage across both gears. The winch drum's gripping surface is shaped for each winch size and drum material and features diagonal ribs (rather than textured abrasive materials) to maximize gripping power and greatly reduce line wear.
Key Features
- Two-speed power ratios: 11.70:1 (first speed) and 46.50:1 (second speed)
- Polished bronze construction for superior durability and corrosion resistance
- Self-tailing mechanism for one-person operation
- Maximum working load of 1300 kg (2866 lbs)
- Compact design with 184 mm base diameter
- Line capacity: 8–14 mm diameter rope
- Stress-free seasonal maintenance
- One-person installation capability
- Accepts all Harken winch handles
Fastener Type
M8 SH (Socket Head)
Line Diameter
8 mm
,
14 mm
Material
Polished Bronze
Safe Working Load
1300 kg (2866 lbs)
Type
Self-tailing Winches
