Harken Unit 3 MKIV Furling System Toggles

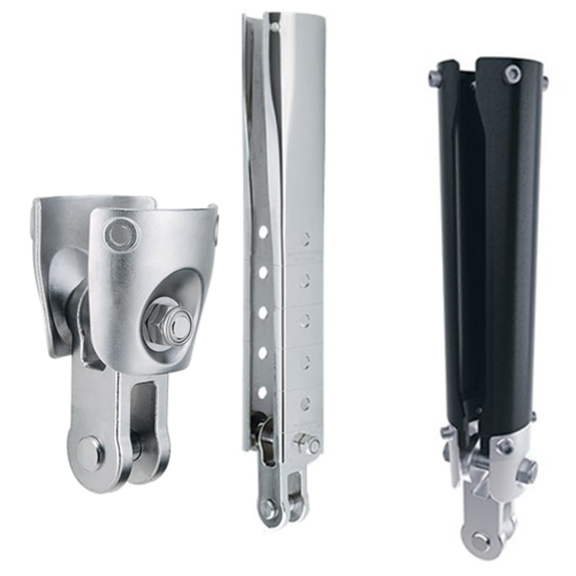

Harken toggle assemblies accept standard turnbuckles with swage, rod, Norseman, or Sta-Lok terminals. Unit 3 toggles are available in three styles and multiple pin sizes for 3/4", 7/8", 1" and 1-1/8" headstay/chainplate clevis pins. This is a required purchase for all Unit 3 MKIV Ocean furlers and also a required purchase for those Unit 3 MKIV Racing furlers sold without an included toggle.
A single stainless steel clevis pin provides access to the turnbuckle for adjustment. The #7413.20 and #7513.20 Heavy Duty (Short Link Plate) Jaw x Jaw Toggles include reinforcing side plates which attach to the four threaded sockets in the bottom of the furler's lower unit. They do not raise the drum or change the length of the furler assembly.
Key Features
- Heavy Duty (Short Link Plate) Jaw x Jaw Toggles with reinforcing side plates for standard mounting

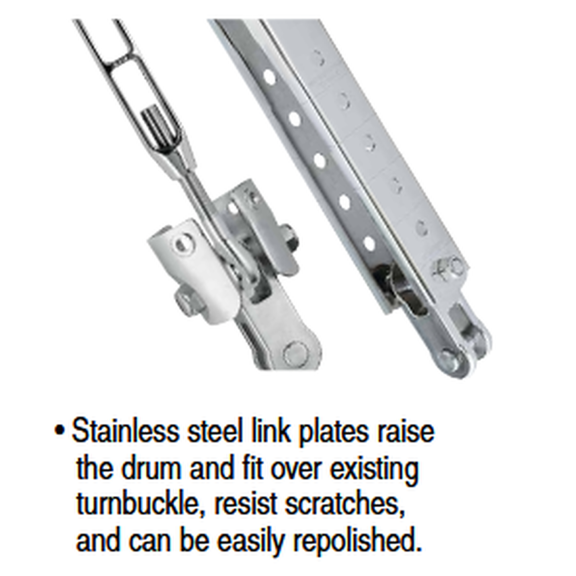

- Long Link Plate Toggles (#7312.21 stainless steel) with multiple height adjustment options to raise drum and clear obstructions such as bow rollers, anchors or windlasses
- Long Link Plate height adjustment raises drum and shortens luff extrusion length between 10-11/16" and 19-9/16" for 3/4" systems, and 11" and 19-7/8" for 7/8" systems

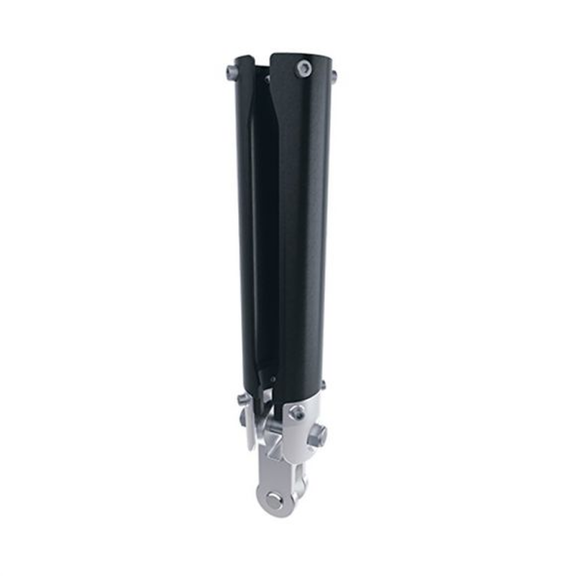

- Black Long Link Tube Toggles (#7513.21, aluminum, hardcoat anodized) available only for MKIV Ocean furlers with 1" or 1-1/8" clevis pin diameters
- Black Long Link Tube installation raises drum and shortens luff extrusion length by 16.525" for both 1" and 1-1/8" clevis pin systems
- Suitable for boats 45-80 feet
