Advanced Collision Avoidance with Real-time Vessel Traffic Information

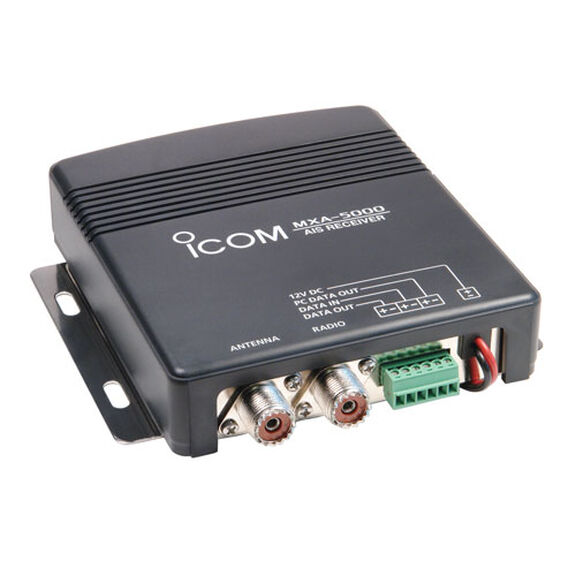

Icom’s MXA-5000 takes real time information from the AIS system and displays it on a computer, radar or a chartplotter for easy navigation and collision avoidance at a glance. The MXA-5000 receives both Class A and Class B signals simultaneously. Its full duplex receiver allows for easy and efficient handling of the information without missing critical data. Built-in antenna splitter means there is no need for multiple antennas onboard, or to buy expensive aftermarket splitters. The MXA-5000 splits the input signal for Receive and protects itself when your VHF radio transmits. MXA-5000 outputs AIS data using the NMEA 0183 format for easy connectivity to most radars, chartplotters, and navigation systems.
Features
- AIS Type: Receive Only
- Antenna: Not included. Includes dedicated antenna splitter to share common antenna with VHF radio
- Antenna impedence: 50Ω
- Dimensions: 5.28" x 6.2" x 1.36" (132 x 155 x 34mm)
- Draw: 0.25A
- Frequency coverage: 161.975MHz (Ch 87B), 168.025MHz (Ch 88B), Simultaneous receive
- Included Equipment: DC power cable, mounting bracket & screws
- Volts: 12V DC (10.8-15.6V)
- Waterproof: No
- Weight (approx.): 400g; (14.1oz)
- Warranty: One year
Dimensions
5.28" Width x 6.2" Length x 1.36" Height
Type
Antenna Splitter
Voltage
12 Volts DC
Warranty
One Year
