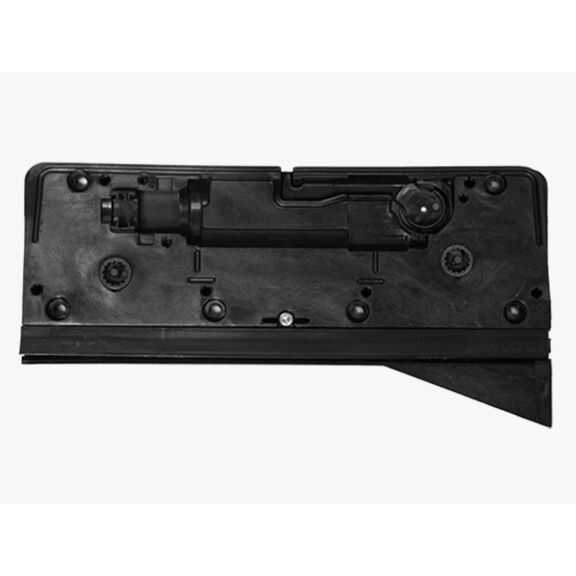

11 13/16" Series S Replacement Interceptor Front Plate, Chine Starboard Back

ZIPWAKE  Series S Replacement Interceptor Front Plate

Replacement plate components for Zipwake Series S Interceptors.

Series S constitutes a product family of four straight, four V-shaped, four chine and one intermediate interceptors. This first-ever modular design made for mass production makes the interceptors durable, affordable and perfectly adapted to any planing or semi-planing boat between 20' - 50' (6 - 15 m).

Straight interceptors come in a wide range of sizes including the following models IT300-S, IT450-S, IT600-S and IT750-S for modular use.

Chine interceptors provide a unique means of maximizing pitch and roll motion control by utilizing the furthest outboard surfaces of the hull bottom for lift generation. As a rule, the lift effect of a chine interceptor matches the lift of a straight interceptor one size larger mounted inboard of the chine, making them the go-to choice when selecting interceptors.

When space between multiple outboards or sterndrives is tight, an intermediate interceptor offers a viable alternative for additional pitch and roll motion control not possible with a straight interceptor without degrading propeller performance. Thanks to their special blade shape, intermediate interceptors generate a narrower trail, thus mitigating propeller inflow disturbance and even allowing installation between outboards mounted at their minimum offset.

V-shaped interceptors for centerline mounting are perfect for filling the gap between twin outboards or sterndrives, as well as dual propeller tunnels. The four V-shaped models cover deadrise angles effectively between 11 - 24 deg. V-shaped centerline mounted interceptors can be included in new installations, or retro-fitted to already installed systems.

Key Features

• True outboard mount
• Modular design
• Fast actuation
• Submersible servo units
• Brushless 12 - 24V DC servo
• Calibration free
• High-precision positioning
• Durable and accessible
