LED Courtesy Light 10 to 30V DC Cool White IP67

Model # 17186529 Mfg # IL7945
3.4 out of 5 Customer Rating
Advice & How-To
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
LED Courtesy Light 10 to 30V DC Cool White IP67
Model # 17186529 Mfg # IL7945
3.4 out of 5 Customer Rating
Advice & How-To
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
Out Of Stock Item out of stock get notified when back in stock:
Thank you! We'll let you know when it's back in stock.
Quantity not available. Please adjust.
+

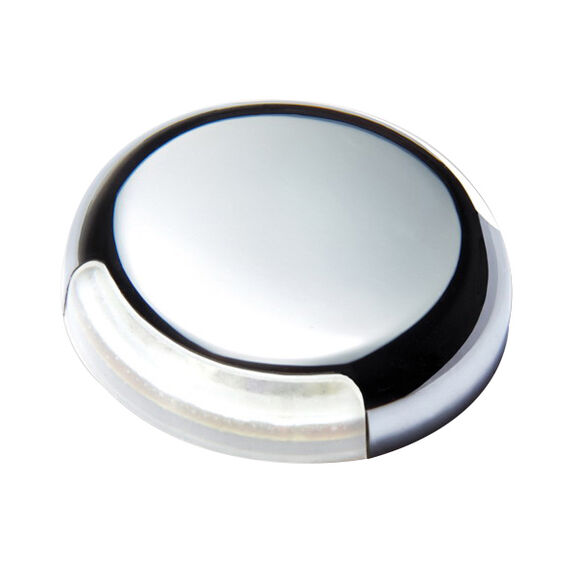

F-23 is a small low profile surface-mount LED courtesy light offered in three different bezel finishes & several LED colors. User may position bezel for up/down or side to side wall wash effect. Applications include stairs, walkways & architectural effects. F-23 may also be installed without the decorative bezel, providing a higher level illumination appropriate for small utility spaces, closets & lockers.

Features & Benefits:

  • Low profile, surface-mount design
  • Tough polycarbonate housing
  • Completely sealed for wet location mounting
  • Extremely low power consumption
  • Provides architectural wall-splash effect
  • Excellent choice for stairs, walkways or accent lighting
  • LED Color: Cool White
  • Trim Ring Finish: Chrome Polycarbonate
  • Lens Material: Polycarbonate
  • Method: Screw Mount
  • IP Rating: IP67
  • Electrical Protections: Reverse Polarity, Transients, EMI
  • Beam Angle: Wall Wash
  • Lifetime Hours: 35000 hr (70% Light Output)
  • Luminous Flux: 15 lumens
  • Certification & Compliance: CE, RoHS, Class III, F-Rated
  • Color Rendering Index (CRI): 75
  • Trim Ring Dimensions: 1.41" Diameter x 0.35" Height
  • Integrated Switch: No
  • Correlated Color Temperature (CCT): 5700K
  • Driver: Integrated
  • Warning
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov

    Dimensions 1.41" Diameter x 0.35" Height
    Material Polycarbonate
    Mounting Hardware Screw Fasteners (Included)
    Type Down Light
    Voltage 10 to 30 Volts DC
    Warranty Three Years
    Wattage 0.5 Watt
