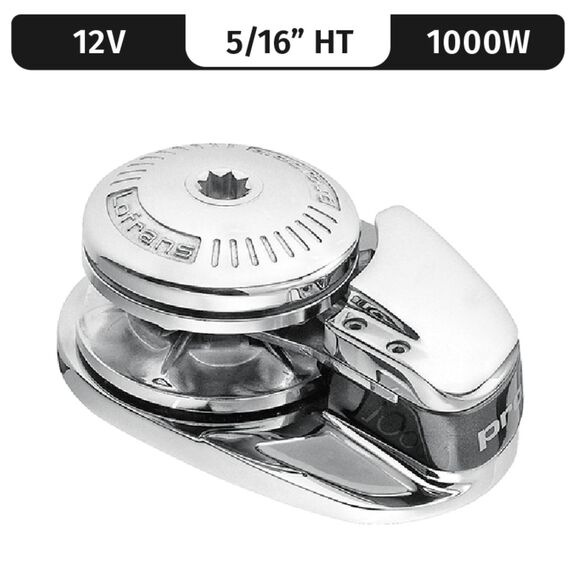

Lofrans X2 Vertical Windlass, 12VDC, 1000W
Model #
24216459
Mfg #
LW7921L-5/16
$2,551.50
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
New
Lofrans X2 Vertical Windlass, 12VDC, 1000W
Model #
24216459
Mfg #
LW7921L-5/16
$2,551.50
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
Quantity not available. Please adjust.
−
+
Complete Your Purchase
IMTRA CORPORATION
$675.00
Lofrans X2 Vertical Windlass, 12VDC, 1000W
The X2 Vertical Windlass offers a high torque series-wound electric motor that delivers immediate lifting power and deployment speed. Its purpose built gearbox has a built in manual over-ride system in case an electrical problem were to arise. Lofrans provides a clutch/over-ride handle to make clutch adjustments or to hand crank the ground tackle onboard in an emergency.
Key Features
- Recommended for hulls 29' - 45'
- Special watertight stainless steel ball bearing in the base
- With drum or low profile (model dependent)
- Independent gypsy and drum operation
- Rope and chain combination gypsy
- Manual chain release
- Manual override available
- Accepts 5/16" High Test or BBB chain spliced to 9/16" or 5/8" 3-strand nylon rope
- Rope and chain management by the spring loaded arm
- Chain counter magnet pre-installed as standard
- IP67 motor cover
- Marine anodised aluminium gearbox
- Extra Clearance option allows for up to 5" of deck thickness and can be shimmed for thinner decks
12V Windlass Specifications:
- Gypsy: 5/16" HT
- Line Speed at Working Load: 20 m/min
- Max Line Speed: 40 m/min
- Maximum Pull: 2,204 lbs (1,000 kg)
- Weight: 44 lbs (20 kg)
- Amperage at Working Load: 135A
- Working Load: 330 (150 kg)
- Motor Size: 1000W
- Dimensions:
- Main Housing Length: 9 1/8" (232 mm)
- Main Housing Width: 6 3/8" (162 mm)
- Height without Capstan: 3 11/16" (94 mm)
- Height with Capstan: 6 1/16" (153 mm)
- Standard Deck Clearance: 7 1/2" (190 mm)
- Stud Extension Depth: 1 9/16" (40 mm)
- Motor Extension Length: 12" (306 mm)
Voltage
12V
Wattage
1000
