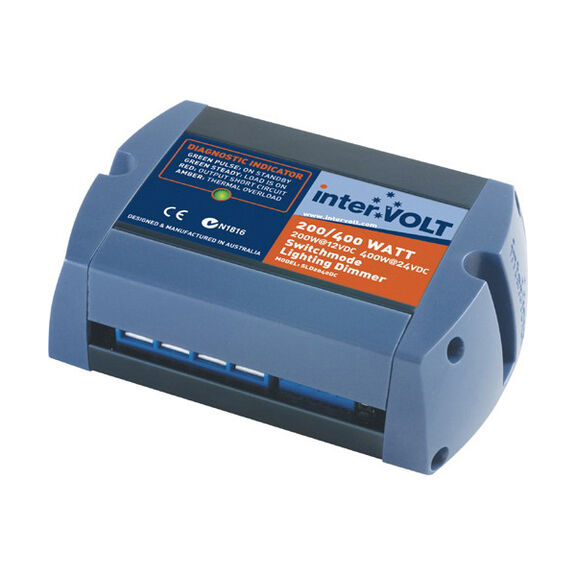

Switch-Mode Dimmer 12/24V DC 200/400 Watts

Intervolt SLD Switch mode Dimmer, 9 to 33V DC, 16.5 Amps, for dimming one DC lighting circuit with multiple momentary push-button switches. The Intervolt SLD Switch mode Dimmer contains all the features demanded by the marine, RV & motor coach enthusiast. Designed for dimming DC (filament lamp) lighting circuits & compatible with some LED products that lack specific built-in dimmer interface electronics. Enclosed in a sleek, thermally-efficient marine-grade housing featuring a heavy-duty corrosion resistant terminal block with insulated barriers to prevent shorting. A selectable master/slave switch enables multiple units to be connected in parallel for unlimited power capacity! These marine lighting dimmers are controlled by any "normally-open" single pole single throw momentary switches (any brand).

Features of the Intervolt SLD Dimmer include:

• Soft-start function: Prolongs Bulb Filament Life
• Memory function that records last light-level setting so same brightness is resumed when turned on again
• Master/slave function that allows either dimmer to act as the master or the remote allowing unlimited power potential
• Multi-voltage capable (9 to 33V DC)
• Supports unlimited numbers of momentary push-button switches
• Diagnostic indicator via color code LED (standby mode, load on, short circuit & over temperature warning
• Protections: Transient voltage, short circuit & over temperature
• Housing Finish/Material: Marine-grade anodized aluminum with polycarbonate-PC end caps
• Dimensions: 4.73" x 3.15" x 1.58"
• Dimmer Type: Remote/Digital/Push-Button
• Input Voltage Range: 9 to 33V DC
• Power Capacity: 12V/200 Watts, 24V/400 Watts
• Power Stacking: Yes, unlimited
• Operating Temperature: -25 to 45 Deg C
• Dimming Voltage Range: 10 to 98% of input voltage
• Standby Current Draw:<10mA
• Complete Off: Yes
• Control Interface: Momentary Push-Button
• No. of Switches: Unlimited (not supplied with dimmer)
• Electrical Protections: Over-voltage, Over-temperature, Transients, Short Circuit
• Certifications & Compliance: CE-EMC - Australian C Tick (AS2064)
• 2 years warranty
