Tide PowerLED, 10-40VDC, Polished SS

Imtra Tide PowerLED, 10-40VDC, Polished SS

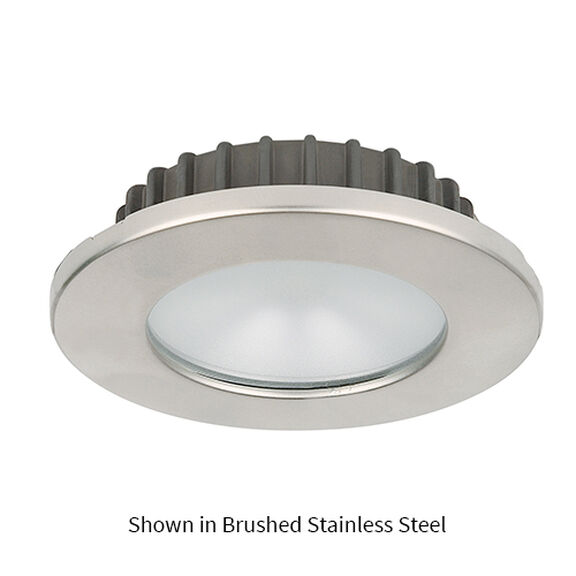

The Imtra Tide PowerLED is a versatile, low-profile recessed LED fixture designed for demanding marine environments. Operating on a wide input voltage range of 10–40VDC, this bi-color Cool White/Blue light consumes only 3.2W while delivering 141 lumens with a correlated color temperature of 6000K and a Color Rendering Index of 85. The integrated current-controlled driver eliminates the need for a separate remote driver, simplifying installation and saving space.

The Tide's 3-wire power and dimming system allows it to directly replace existing halogen spotlights without running additional wiring. When paired with Imtra's ILIM80130 single-channel or ILIM80140 dual-channel PWM dimmer module, the Tide supports single or bi-color dimming via a momentary push-button interface across a range of 5–100%. Carefully engineered optics produce fully blended illumination free of hot spots or distracting artifacts, while the frosted glass lens ensures a soft, even light output.

Built for longevity, the Tide features a robust thermal management system that minimizes lumen depreciation over its 50,000+ hour rated lifetime. The black electrophoretic aluminum housing provides corrosion resistance, and the IP65 ingress protection rating safeguards the exposed frontal surface against water intrusion. The small-diameter 2.86" (73mm) bezel and shallow 0.55" (14mm) recessed depth make it ideal for overhead installations with limited cavity depth. Mounting requires only three #4 flathead screws into a 2.13" (54mm) cutout.

Suitable for a wide range of applications aboard vessels of any size, including general cabin lighting on smaller boats, undercabinet lighting, hard tops, arches, walkway overhangs, and shower stalls. CE-EMC and RoHS certified, Class III rated, and manufactured in the USA with a 5-year warranty.

Key Features

• Wide 10–40VDC input voltage range
• Cool White/Blue bi-color output, 141 lumens at 3.2W
• Integrated driver — no remote driver required
• 3-wire power and dimming replaces halogen spots without extra wiring
• Momentary push-button dimming, 5–100% range
• Compatible with Imtra ILIM80130 and ILIM80140 PWM dimmer modules
• IP65 ingress protection on exposed frontal surface
• Low-profile 0.55" recessed depth for shallow overhead mounting
• Frosted glass lens for smooth, artifact-free illumination
• Black electrophoretic aluminum housing
• 50,000+ hour rated lifetime with robust thermal management
• CE-EMC and RoHS certified, Class III
• Made in the USA, 5-year warranty
