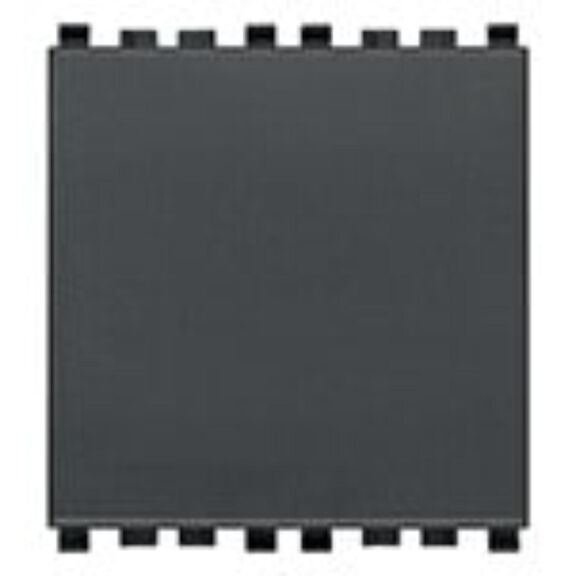

Vimar Eikon 1P 16AX 2-Way Switch, Lightable, Replaceable Button, Grey, 2-Module
Complete Your Purchase
VIMAR Eikon 1P 16AX 2-Way Switch, Lightable, Replaceable Button, Grey, 2-Module
Vimar Eikon 2-way switch, 2-module in anthracite grey — 1P-pole, 16A, 250V, 1-module. Designed for the Eikon modular wiring system on yachts and motor vessels, this device features Vimar's patented soft-action mechanism — a joint-pin leaf-spring contact system that cushions button movement, reduces electrical recoil, and eliminates noisy switching. The lightable button accepts optional LED indicator units (sold separately) in amber, blue, green, red, or white at 12/24V or 110/250V. The replaceable button cap supports on-site engraving or custom laser-cut symbols for function labeling. Plack-clack front-access installation snaps the device into any Eikon 1-module mounting frame without tools. Halogen-free thermoplastic; CE and IMQ certified. Max 200W for self-ballasted lamps (IEC 60669-1:2017).
Key Features
- Switch
- Eikon
- Eikon series cover plates and frames
- Thermoplastic (halogen-free)
- Grey
- 250 V
- 16 A
- IP40
- 2.0
- 44.7 x 49 x 36.1 mm
