Wiper Motor 240BS 24V 40Nm 1 1/8" Bulkhead Thickness
Model #
17185349
Mfg #
EX212440.30
$904.99
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
Wiper Motor 240BS 24V 40Nm 1 1/8" Bulkhead Thickness
Model #
17185349
Mfg #
EX212440.30
$904.99
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
Quantity not available. Please adjust.
−
+
Complete Your Purchase

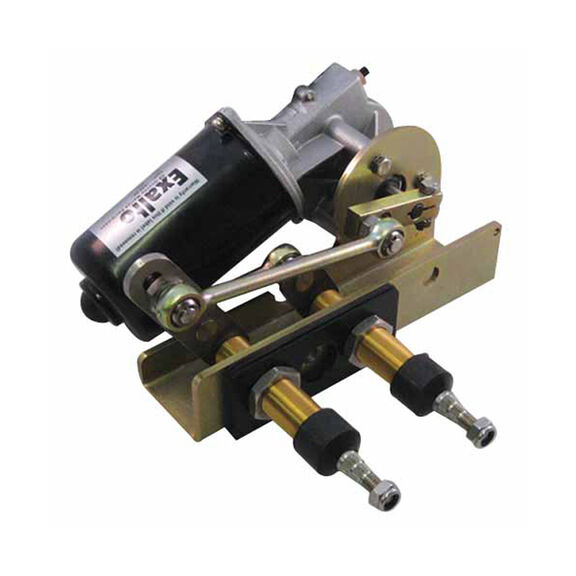

Self-parking wiper motor for bulkhead mounting. The 240BS is a powerful wiper with dual driven shafts. It can clean windows up to a height of 63" (1600mm) with a torque of 40Nm, this wiper motor powers arms & blades of 35.4" (900mm) in length. The wiping arc of this wiper motor is freely adjustable from 40 to 90 Degrees.
- Dual drive shafts for additional power
- Tapered brass heads for secure arm/motor connection
- 316 stainless steel shafts, fasteners & components
- Choice of stepless sweep angle from 40 to 90 Degrees
- Durable galvanized steel bracket
- Long life in wet, corrosive environment
- Easy installation & wiring
- Wide range of arms & blades to fit most any window
- System has maximum wiper reach of up to 52 1/2"
- 3 years warranty on motors & arms, 1 year for blades
- Accepts arms EX2140.800-EX2140.900
- Material: Stainless Steel (Shafts & Fasteners)
- Compatible With: Exalto Type 1.5 Wiper Systems
- Shaft Diameter: 20mm
- Applications: For Wipers
- Voltage: 24 Volts
- Power/Torque: 40Nm
- Current Rating: 4 Amps
- Fuse Size: 6 Amps (Slow Blow)
Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Dimensions
1 1/8 Inches Thickness (Bulkhead)
Features
Adjustable from 40 to 90 Degrees
Type
Wiper Motors
Warranty
Three Years Warranty on Motors & Arms
,
One Year on Blades
