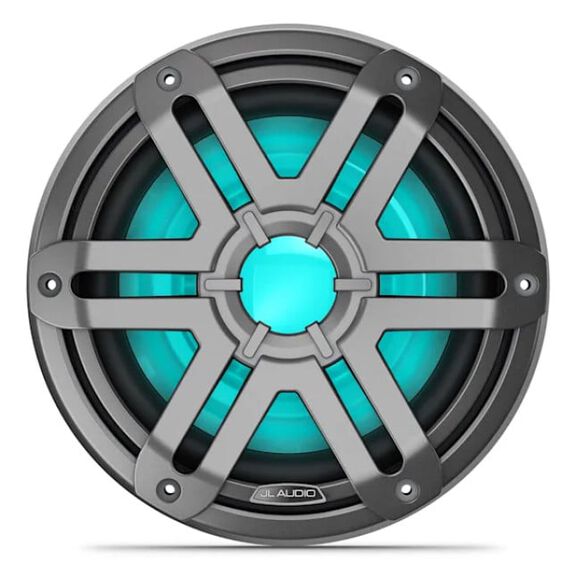

M200 10" Marine Subwoofer Driver with RGB LED Lighting

The JL Audio® M200 marine subwoofers bring M-series bass to your boat for less, so you can feel every beat on the water. With 250-watt RMS power handling and a long-excursion design, this subwoofer delivers powerful and deep bass with less distortion. LED lighting enhances your audio experience with a wide spectrum of colors. Pair with the Garmin Spectra™ control module (sold separately) for advanced lighting control from your compatible chartplotter or ActiveCaptain® app.

Match your vessel's look with white or gray color options and interchangeable grilles (sold separately). Sail to your heart's content knowing your subwoofer is built from marine-grade materials and features corrosion-resistant connections and circuit boards to withstand salt and sun.

Key Features

• High-quality 10" marine subwoofer
• 250-watt RMS power handling gives powerful and deep bass with less distortion
• Long-excursion, high-power handling design delivers audio with more depth
• Injection-molded polypropylene cone and rubber surround with a marine-grade synthetic spider keep the cone under control for tight bass response
• Purpose-engineered to operate without a dedicated enclosure, needing only a moderate amount of air behind it
• LED lighting enhances your audio experience with a wide spectrum of colors; pair with the Garmin Spectra™ control module (sold separately) for advanced lighting control from your compatible chartplotter or ActiveCaptain® app
• Customize your subwoofer with interchangeable grille options (sold separately)
• Marine-grade materials and finishes with corrosion-resistant connections and circuit boards withstand salt and sun

Specifications

Grille Color

• White Sport (010-04759-00)
• Gray Sport (010-04759-01)

All Models

• Size: 10"
• Speaker type: Infinite baffle subwoofer
• Continuous power handling (RMS): 250 W
• Recommended amplifier power (RMS): 250 W
• Sensitivity (SPL @ 1 W/1 m): 86 dB
• Nominal impedance: 4 ohms
• Cone material: Injection-molded polypropylene
• Water rating: IPX6
• LED lighting: RGB
• LED supply voltage: 10 - 14.4 VDC
• LED load current @ 14.4 VDC (max): 220 mA
• Speaker connections: Spade connectors
• LED connection: Flying lead with waterproof connector, 4-conductor 20 AWG wire
• Diameter: 10.84" (275 mm)
• Mounting depth clearance: 5.16" (131 mm)
• Frontal grille protrusion: 1.85" (47 mm)
• Mounting hole: 8.75" (222 mm)
• Bolt hole circle: 9.72" (247 mm)
• Weight: 10.69 lb (4.85 kg)
• Compass-safe distance: 116" (295 cm)

What's Included

• One subwoofer with grille (White Sport or Gray Sport, per model)
• One 0.25" female crimpable connector
• One 0.185" female crimpable connector
• One water-resistant 4-pin connector
• Mounting screws
• Documentation
