MMR-20-BE Round Remote Controller for MediaMaster
Complete Your Purchase

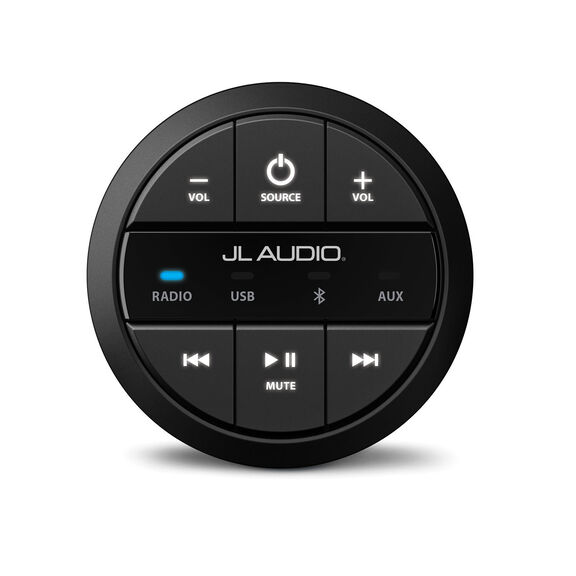

MMR-20-BE Round Remote Controller for MediaMaster
Round, wired, non-display remote controller for use with MediaMaster®
The MMR-20-BE is a wired remote controller engineered to add auxiliary control functionality to MediaMaster® source units.
Built for marine and off-road applications, its weatherproof (IP67 rated) design places frequently used functions of your MediaMaster® source unit in a simple, intuitive design that’s easy-to-use. Its large, backlit controls and LED source indicators are easily identifiable, day or night, with brightness settings that can be adjusted using your MediaMaster® source unit.

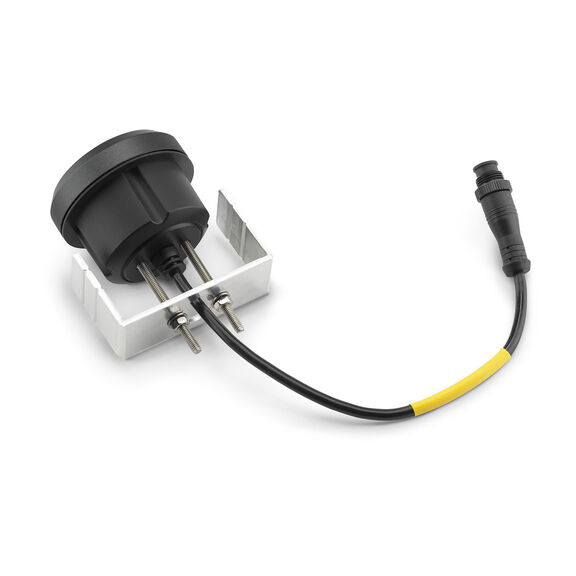

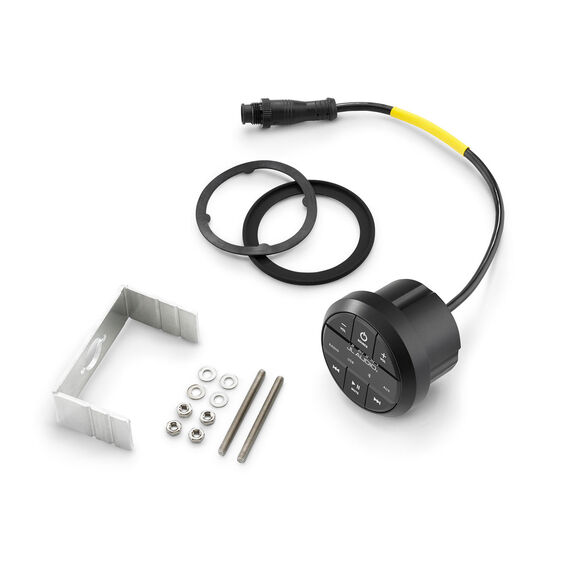

A small footprint and simple, one-hole design means the MMR-20-BE can be installed in even the tightest of spaces. Depending on your system layout, you may add up to three MMR-20-BE remote controllers to a single MediaMaster® source unit. Each MMR-20 can be connected up to 75 ft. (22.8 m) away from its source unit.
MediaMaster® remote control capabilities include:
- Power On/Off
- Source Select
- Volume Up/Down
- Track Up/Down (USB & BT)
- Track Fast-Forward/Fast-Rewind (USB)
- Favorite Up/Down (Radio)
- Play/Pause (USB & BT)
- Mute/Unmute (Radio & Aux)
Note: Requires MMC Connection Cables (sold separately). Connection cables are available in several lengths to fit your specific application. Y-splitters are also available to connect up to three remotes to a MediaMaster® source unit.
Specifications:
| Maximum Mounting Panel Thickness | 1.5 in / 38 mm |
| Mounting Hole Diameter | 2 in / 50 mm |
| Rear Depth (A)* | 1.16 in / 29 mm |
| Width (W) | 2.36 in / 60 mm |
| Height (H) | 2.36 in / 60 mm |
| Depth (D) | 0.59 in / 15 mm |
