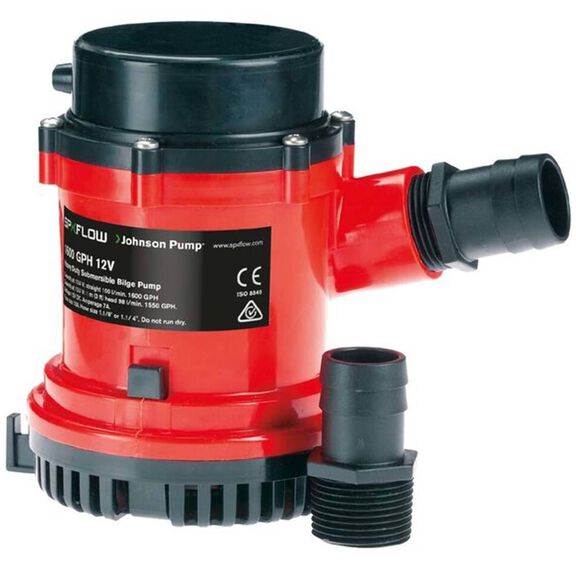

Heavy Duty Electric Bilge Pumps
Get 5X West Advantage Points on all purchases for a limited time! Not a rewards member? JOIN NOW
Complete Your Purchase
Dependable bilge pumps for commercial and recreational use.
Designed to meet and exceed the tough demands of commercial and recreational duty, these pumps feature a 12-pole motor with double ball bearings for extended service life. Impellers are carefully designed to maximize head and flow. 2200 and 4000 GPH models incorporate a mechanical seal design that eliminates shaft wear. All models feature snap-in bases that can be easily removed to clear debris. Outlet port check valve included for optional use.
Key Features
- Double ball-bearing motors for extended service life
- Snap-in base allows easy removal for clearing of debris
- Outlet port check valve included for optional use
Specifications
- Type: Submersible centrifugal electric bilge pump
- Port Sizes: 1-1/8"–2"
- Built-In Switch: No
- Material: Thermoplastic body, stainless-steel shaft
- Warranty: Three years
| Capacity | Amperage | Port Dia. | Dimensions |
|---|---|---|---|
| 1600gph | 7A @ 12V DC | 1 1/8" & 1 1/4" | 5 7/8"H x 4 1/4"dia. |
| 2200gph | 7.5A @ 12V DC | 1 1/8" & 1 1/4" | 7"H x 4 1/4"dia. |
| 4000gph | 19.5A @ 12V DC | 1 1/2" & 2" | 8 1/2"H x 4 13/16"dia. |
More Information
For installation instructions, see the Heavy-Duty Bilge Pump Data Sheet.
