Home Series Diffused Aeration Kit with Single Loop Diffuser

Kasco Marine Home Series Diffused Aeration System

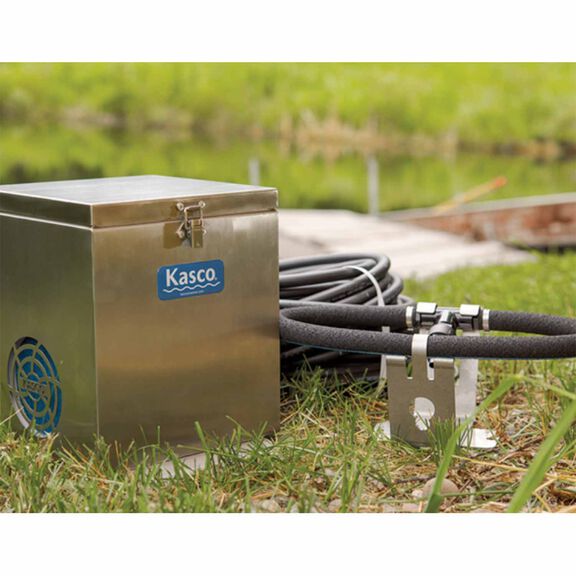

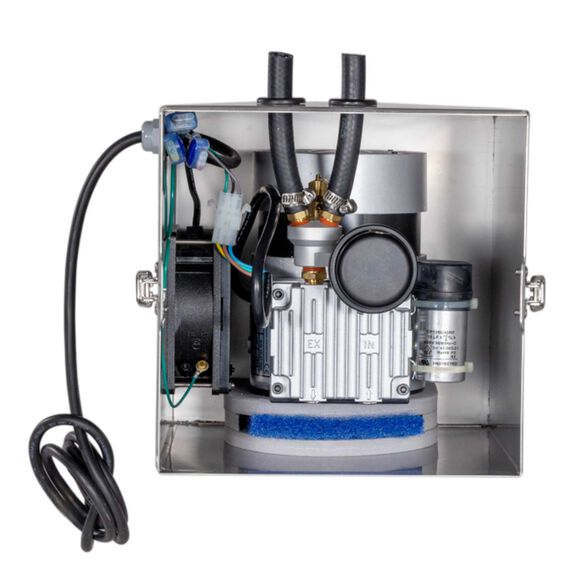

The Kasco Marine Home Series Diffused Aeration System was created specifically for homeowners managing smaller, residential backyard ponds. The DA1 model features a 1/4 HP compressor running on 120V, enclosed in a sturdy stainless steel cabinet that mounts on the ground and provides quiet, unobtrusive operation. The system includes one single-loop diffuser and one 100-foot roll of 3/8-inch SureSink weighted tubing, delivering everything needed to aerate ponds up to 1 acre in size (at depths of 13–20 feet) and a maximum depth of 20 feet.

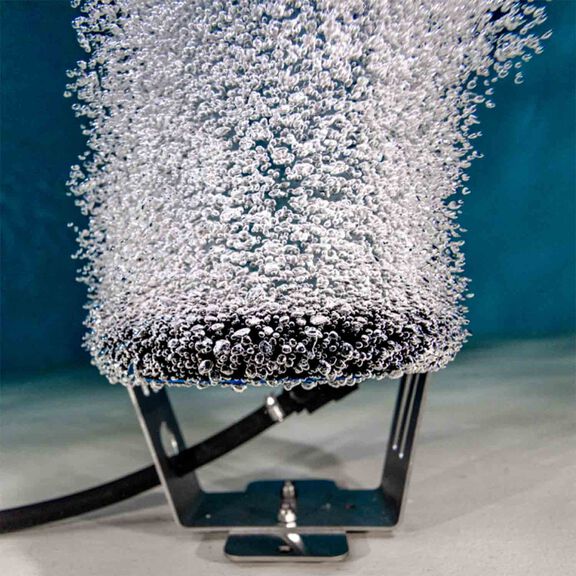

The system works by using a shore-mounted compressor to push air through weighted tubing lines to a single-loop diffuser positioned at the bottom of the pond. As air is released from the diffuser, it rises through the water column, creating continuous bottom-up water movement and mixing. This non-stop circulation is essential for eliminating and preventing common pond problems including weed overgrowth, algae accumulation, unpleasant odors, and fish kills, while consistently improving overall water quality.

Because all electrical components remain on shore, no electricity is introduced into the water, making the system both safe and effective. The stainless steel cabinet blends into the outdoor backyard environment and is built for longevity. When wall or vertical mounting is preferred, an optional mounting bracket (part number 774440) is available for purchase separately. The Home Series is backed by strong warranty coverage, including a lifetime warranty on the diffuser, a 15-year warranty on weighted tubing, and a 2-year warranty on the cabinet, compressor, and all external parts.

Key Features

• 1/4 HP compressor, 120V operation

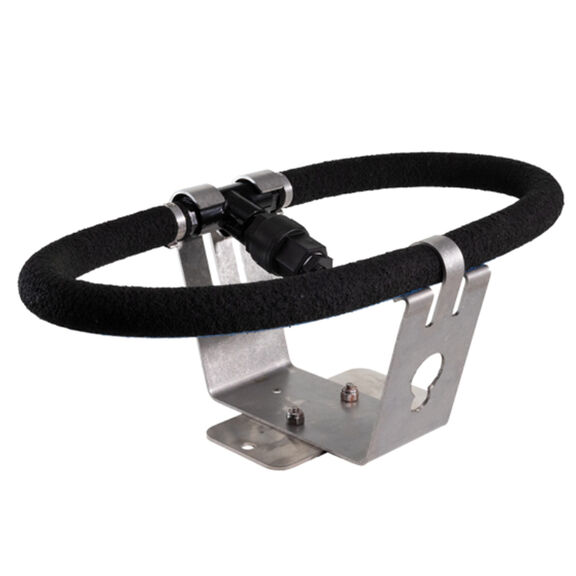

• Single-loop diffuser for bottom-up water circulation

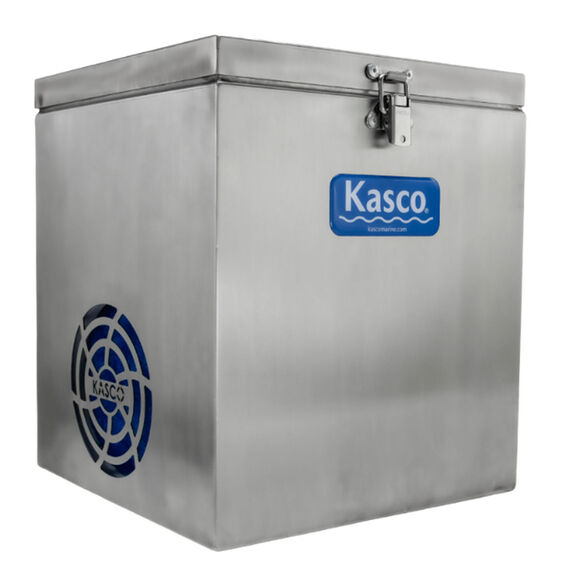

• Stainless steel ground-mount compressor cabinet for quiet, durable outdoor use
• 100-foot roll of 3/8-inch SureSink weighted tubing included
• No electricity in the water — shore-mounted compressor only
• Ideal for ponds up to 1 acre and up to 20 feet deep
• Reduces and prevents weed overgrowth, algae, unpleasant odors, and fish kills
• Optional wall/vertical mounting bracket available separately (part #774440)
• Lifetime warranty on diffuser; 15-year warranty on weighted tubing; 2-year warranty on cabinet, compressor, and all external parts
