12 V Heavy Duty Tab Actuator - 23' Cable
Complete Your Purchase

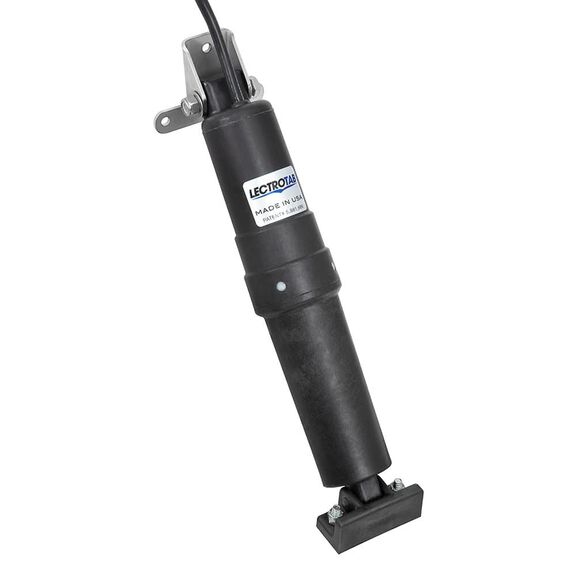

Lectrotab 12 V Heavy Duty Tab Actuator - 23' Cable
Lectrotab meets the needs of boats operating at high speeds or in rough conditions by offering its heavy duty trim tab actuator. The heavy duty actuator features a reinforced upper mounting boss and a 12 gauge stainless steel upper bracket. Lectrotab heavy duty trim tab actuators are precision-engineered to combine quiet operation with a non-hydraulic, maintenance free design.
The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat. Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates a standard or low profile transom mounting bracket.
Key Features
- Reinforced actuator upper mounting boss with 12-gauge stainless steel upper bracket
- Upper ram seal location cannot be damaged by barnacle growth or fouled rams
- Utilizes internal pressure equalization system
- Internal brake system prevents unwanted tab movement when underway or backing down
- Quiet, precision-engineered operation
- All actuators fully load tested to push 1,000 lbs of force
- Non-metallic external structure that cannot corrode or deteriorate in sun or water
- Totally self-contained; no hydraulic pumps or fluid lines needed inside the boat
- Compatible with both saltwater and freshwater applications
