50 mm HTX Block - Swivel, Becket, Cam
Complete Your Purchase

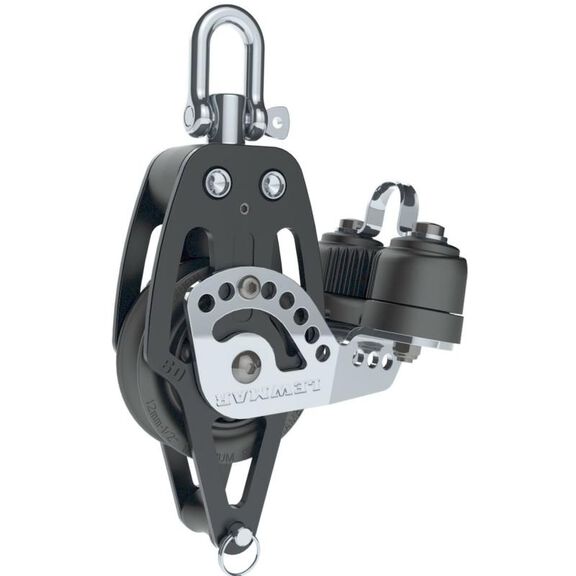

Lewmar 50 mm HTX Block - Swivel, Becket, Cam
The Lewmar HTX Hardware Range brings together years of design and manufacturing expertise with direct input from boat builders, designers, and sailors. Drawing upon the proven design of the Lewmar Racing Range, HTX blocks are constructed simply from high-quality engineering alloys and thermoplastics, providing enhanced reliability and free-running efficiency. These blocks are ideally suited for frequently adjusted, highly loaded systems that use modern line technology and reduced line diameters.
The 50 mm HTX Block with Swivel, Becket, and Cam features precision-machined bearing pin surfaces that deliver superior performance, with efficiency further enhanced at loads above 450 kg when the acetal sheaves begin to self-lubricate. The head design, inspired by the Lewmar Racing Range, incorporates a grub screw swivel head locking mechanism that allows the head to be configured as either fixed or swivel to suit the application. The integrated cam cleat provides convenient line-locking capability directly at the block.
Key Features
- Strong aluminium side cheeks for robust construction
- Central plain bearing for efficiency at high loads
- Side thrust Delrin ball bearings for friction-free rolling
- Acetal sheaves self-lubricate at loads above 450 kg for superior high-load performance
- Precision-machined bearing pin surface
- Swivel head design inspired by Lewmar Racing Range
- Grub screw (allen key) head locking/unlocking mechanism for fixed or swivel configuration
- Single block with becket and integrated cam cleat
- Shackle post diameter: 3/8" (9.4 mm)
- Maximum pin diameter: 3/16" (5 mm)
- Cam cleat working load: 120 kg
- Manufacturer break load (MBL): 1,600 kg
