Lewmar V2 Vertical Windlass
Model #
24258709
Mfg #
2020202352
$1,209.99
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
New
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
Quantity not available. Please adjust.
−
+
Complete Your Purchase

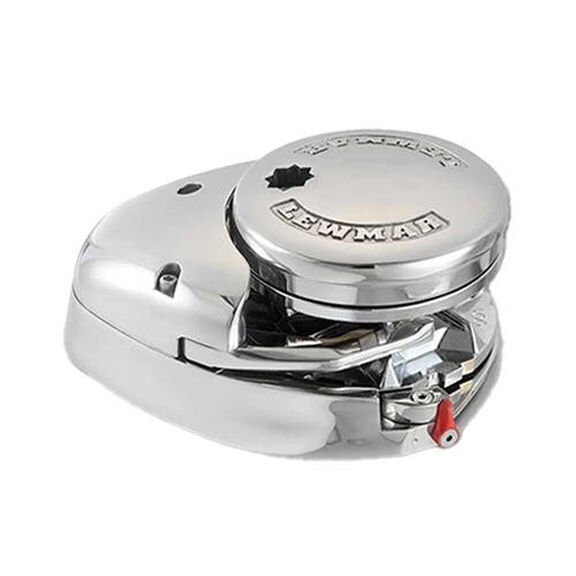

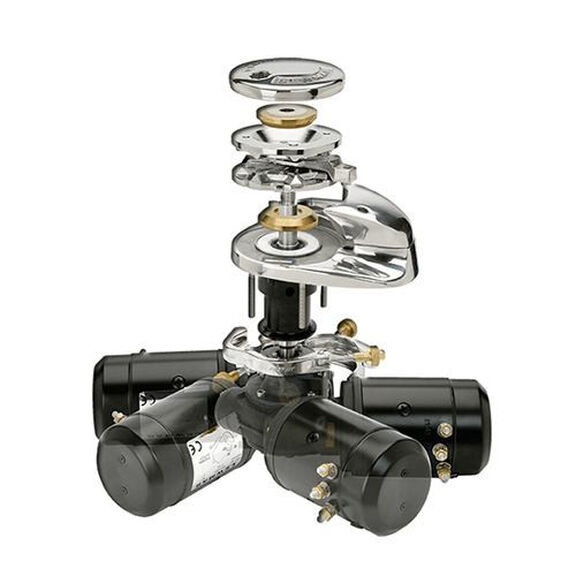

Lewmar V2 Vertical Windlass
Key Features
- Manual Chain Release Free-Fall for easy anchor deployment
- Cone clutch for smooth, easy control
- Fall-safe anchor lock provides secure anchoring
- Robust and reliable worm gearbox
- Optional manual override motor gearbox for emergency recovery
- 12 Volt DC system
- Suitable for boats up to 45 feet
- Complete kit includes V2 windlass, rocker switch, solenoid, and circuit breaker
- 316 stainless steel deck unit with vertical gypsy for corrosion resistance
- 5-year limited warranty
The Lewmar V2 Vertical Windlass delivers approximately 1000 lbs of maximum pulling power with a retrieval speed of 79 ft/min. The motor draws approximately 50 amps under normal operation, protected by a 70-90 amp circuit breaker. Compatible with 5/16" G4 HT chain and 8 mm DIN 766 chain, as well as 9/16" (14 mm) 3-strand or 8-plait nylon rode. The windlass features helm rocker switch control with optional foot switches or remote control capabilities, making it ideal for recreational cruising and anchoring operations.
Amperage
50 A
Anchoring Speed
79 ft/min
Boat Length
45 feet
Material
Stainless Steel
Maximum Pull
1000 lbs
Retrieval Speed
79 ft/min
Voltage
12V DC
Weight
42 lbs
