Ocean Series 54ST Two-Speed Self-Tailing Winch

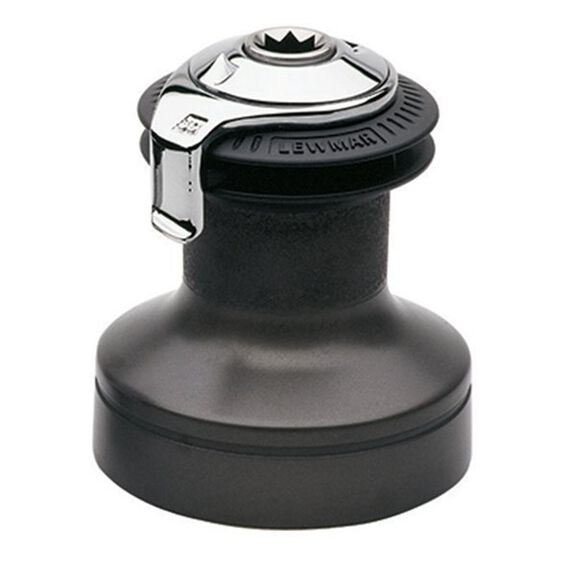

Lewmar Ocean Series 54ST Two-Speed Self-Tailing Winch

The Lewmar Ocean Series 54ST self-tailing winch is engineered to satisfy the demands of both competitive racing sailors and offshore cruisers. Built from gray anodized aluminum, this two-speed deck winch combines race-bred performance with straightforward, tool-free servicing to deliver reliable line handling across a wide range of conditions. The Wavespring self-tailing mechanism — a combination of Wavegrip and self-adjusting springs — automatically adapts to varying rope diameters, ensuring a secure grip at all times without the need for manual adjustment.

At the heart of the winch is a massive, all-bronze one-piece center stem that supports stainless steel main shafts and gear spindles, lending exceptional structural strength. The bronze gear trains are machine-cut to very high tolerances, delivering smooth, powerful operation. A rigid one-piece nylon cage with snap-in stainless steel bearings and an integral grease pocket provides permanent lubrication and free-running performance, so the winch will not seize under any operating load.

Strip-from-the-top construction and a screw-on cap allow the winch to be completely disassembled by the owner without removing it from the boat. A highly efficient feeder arm design minimizes friction and ensures absolutely snag-free operation. From size 40 onwards, the Ocean series can also be converted to electric operation. The winch is backed by an impressive three-year warranty against defects in parts and workmanship.

Key Features

• Two-speed self-tailing design with Wavespring mechanism for automatic grip on diverse rope diameters
• First gear ratio 2.8:1 / second gear ratio 11.2:1; power ratios 13.8:1 / 54:1
• Gray anodized aluminum construction
• All-bronze one-piece center stem with stainless steel main shafts and gear spindles
• High-tensile bronze gears machine-cut to tight tolerances for smooth power delivery
• Rigid one-piece nylon cage with snap-in stainless steel bearings and integral grease pocket
• Tool-free, strip-from-the-top servicing without removing the winch from the boat
• Working load: 1,480 kg
• Accepts rope diameters 5/16–5/8 in (8–16 mm)
• Mounts with 5 x M8 countersunk head screws on 150 mm (5-29/32 in) PCD
• Three-year warranty against defects in parts and workmanship
• Convertible to electric operation (from size 40 upward)
