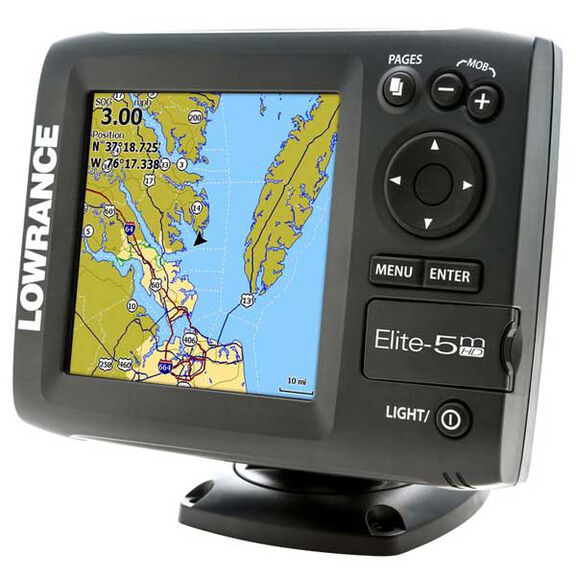

Elite-5m HD Gold Chartplotter

All-NEW 5-inch chartplotter with built-in GPS antenna and Navionics® Gold high-definition mapping.

The Elite-5m HD Gold includes many of the proven features recently launched with the highly successful Elite-7m HD and comes pre-packaged with Navionics Gold cartography.

Key Features:

• Lowrance-exclusive, high-resolution, 5-inch color display
• Highly accurate, built-in GPS antenna plus a detailed U.S. map featuring more than 3,000 lakes and rivers and coastal contours to 1,000 feet.
• Support for Insight Genesis™ personalized map viewing.
• Navionics Gold chartcard featuring U.S./Canada/Alaska and Bahamas coastal, Great Lakes and major Canadian lakes detail.
• Optional chart upgrades include Lake Insight™ and Nautic Insight™ PRO and HD, Navionics® HotMaps® Premium, Fishing Hotspots® PRO and Jeppessen C-Map Max-N.
• New page selector menu with quick access to all features using one-thumb operation
• Multi-Window Display lets you quickly choose from pre-set page layouts – including a three-panel view – while still viewing live charting.
• Supported by Lowrance Advantage Service program

Specifications:

• Display:  5 in./12.7 cm Full VGA SolarMAX PLUS Color
• Resolution:   256 color TFT 480 x 480
• Backlighting:   Fluorescent cold cathode
• GPS Receiver/Antenna:   Internal high-sensitivity WAAS + EGNOS + MSAS
• Waypoint Management:   Up to 3,000
• Communication:   NMEA 0183
• Languages:   23
• Media Port :  One (1) microSD slot
• Operating Voltage:   12 vDC (10-17 vDC min-max)
• Warranty:   One year
