Year after year, more fishing tour pros use HDS than all other fishfinder brands combined.

HDS LIVE 9 is will carry on that tradition behind premium performance and support for the best collection of innovative sonar features available—from new Active Imaging™ and StructureScan® 3D with Active Imaging to FishReveal™ and LiveSight™ real-time sonar—you will experience a new level of fishfinding performance with HDS LIVE 9.

Navigating to your favorite fishing spot or finding a new one has never been easier, behind the best suite of navigation features ever built into an HDS display—including preloaded C-MAP® US Enhanced mapping with 1-foot contours on 4,000-plus lakes, C-MAP® Easy Routing, Navionics® Autorouting capability and C-MAP Genesis Live mapping.

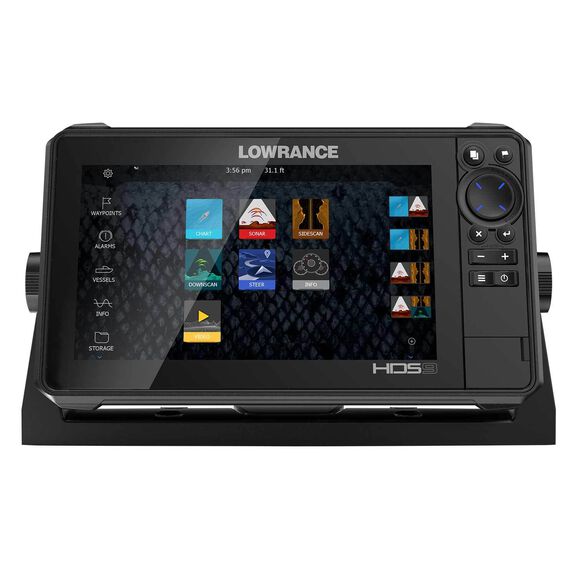

HDS LIVE also simplifies your time on the water with onscreen text messages and call notifications, and an intuitive user interface that makes HDS LIVE even easier to use.

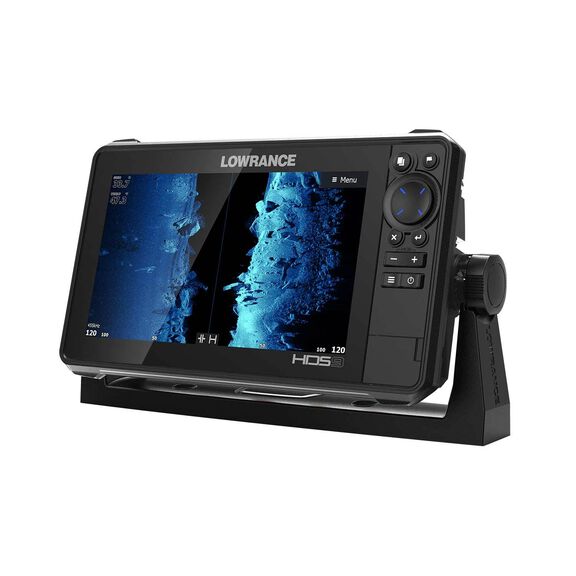

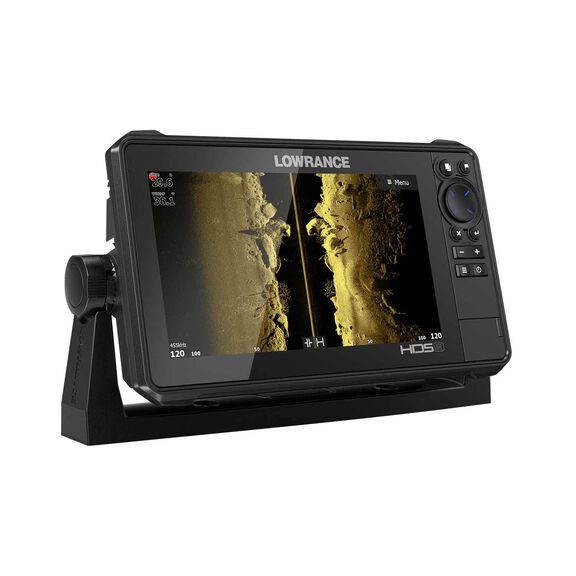

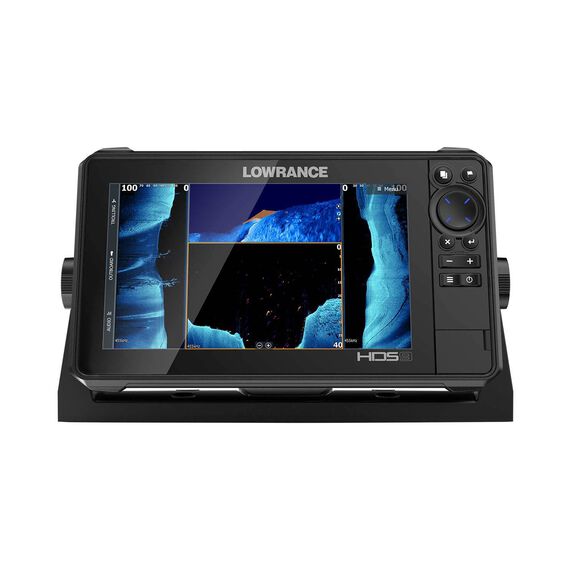

Featuring a high-resolution 9-inch SolarMAX™ HD screen, HDS LIVE 9 provides industry-leading images that are always easy to see—from any angle, in direct sunlight or even through polarized sunglasses.

HDS LIVE delivers powerful fishfinding sonar with a high-performance, dual-core processor that produces smooth, lag-free operation, responsive touchscreen performance, and faster chart redraws and sonar updates.

Features:

  • Active Imaging™ 3-in-1 (CHIRP/Side/Down)
  • Smartphone notifications
  • C-MAP® Genesis Live custom mapping
  • High-resolution 9-inch  SolarMAX™ HD multi-touch screen with the widest range of viewing angles—viewable even through polarized sunglasses
  • Preloaded high-detail C-MAP® US Enhanced charts with 1-foot contours on 4,000 lakes

Type Fishfinder/Chartplotter Combo
Cartography U.S. Inland
Diagonal Screen Size 9 Inches
Dimensions 11.02" x 6.56" x 4.06"
Display Color Color
Display Shape Horizontal
Display Type SolarMAX
Frequency 800/455 KHz
GPS Internal GPS Antenna
Maximum Depth SideScan: 150ft (800kHz) or 300ft (455kHz)
Mount Type Gimbal
Resolution 1280 x 720
Sonar SideScan , DownScan and CHIRP
Specific Transducer Active Imaging 3-in-1 Transducer (included)
Type Fishfinder/Chartplotter Combo
