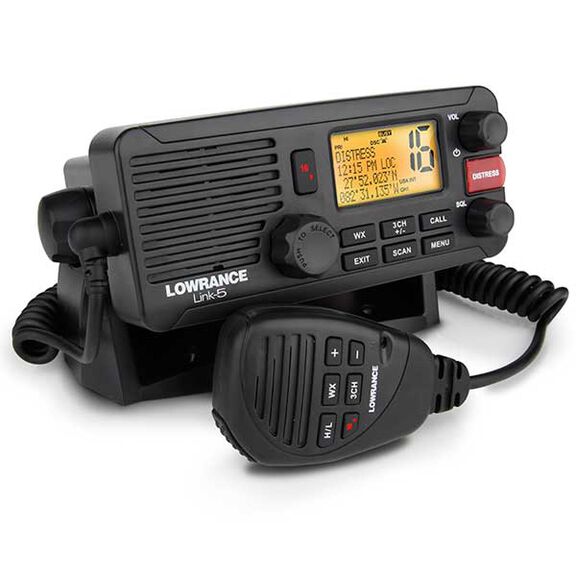

Link-5 Fixed-Mount VHF Radio
The Link-5 marine VHF system is compact and affordable, with an ultra-rugged waterproof chassis. Link-5 features an efficient, extra-large rotary knob interface for easy channel changing, menu navigation and setting control. Clear display of GPS lat/lon data is presented on a 1" x 1.8" LCD display with adjustable backlighting. Extra large Channel 16 key, dedicated volume and squelch knobs, weather keys, selectable Dual and TriWatch modes, local and distant functions, and three user-programmable “favorite” channels.
Equipped with memory retention, the radio logs up to 10 distress calls and 20 individual DSC calls. DSC control keys include (priority) 16/9, WX, 3CH/+/- for quick channel changing, CALL, EXIT, SCAN and MENU. Additional system features include a rotary volume control with power on/off, all-channel priority and memory channel scans, 20 user-programmable names with MMSI, 10 weather channels with a 1050Hz tone alert and a second receiver for incoming DSC messages on Channel 70.
- Channel Selection: Multi-function knob
- Controls: Volume, squelch, channel knobs, six buttons
- Mic Controls: PTT button, Hi/Lo, CH16, 3CH, channel up/down
- Display Type: Segmented LCD
- Scanning Modes: Dual/Tri Watch
- Weather Alert: Yes
- Receiver Performance: Sensitivity: 25µV; Rejection: 68dB
- Draw: 6A TX at 25W, 300mA standby
- NMEA Interface: NMEA 2000, NMEA 0183
- Dimensions: 7 1/8"W x 3 13/16"H x 6 1/8"D
- Waterproof Rating: IPX7
