MicroSport Off-Road Low Bed Trailer

MicroSport™ Off-Road LowBed™ Trailer Overview

The MicroSport™ Off-Road LowBed™ Trailer is a fully submersible, off-road-ready trailer designed to make transporting kayaks and canoes reliable and straightforward. Its lowered crossbars make loading and unloading easier, while the rugged black powder-coated, pre-galvanized steel frame provides superior rust resistance and long-lasting durability. Assembly can be completed in three to four hours using common tools. Proudly made in the USA, this trailer comes with a Five-Year Limited Warranty for peace of mind.

Features

• Lowered crossbars for comfortable loading of kayaks and canoes
• Rust-resistant construction: Black powder-coated, pre-galvanized steel frame for exceptional corrosion resistance
• Off-road capability: Oversized pontoon tires designed for rugged terrains
• Lighting system: DOT and Transport Canada-approved "plug-and-play" submersible LED light kit
• Marine-grade hubs: Pre-assembled sealed hubs for clean and simple installation
• Reinforced steel tongue: Capable of transporting boats up to 20 feet in length
• Load bars: 78-inch steel, 1 ¼” square load bars with D-ring tie-downs for secure transport

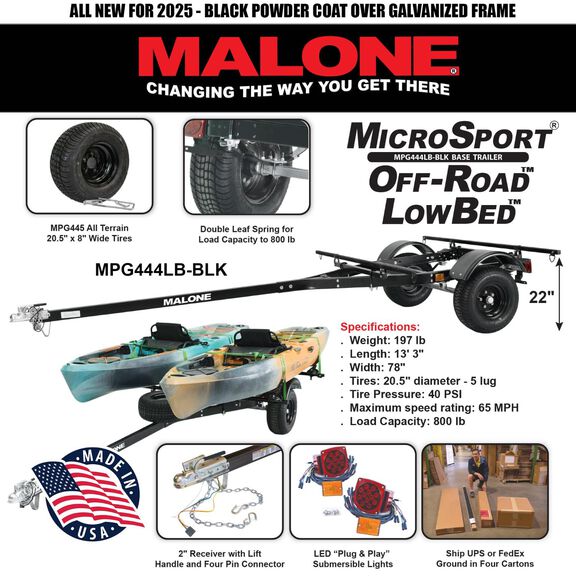

Specifications

• Load Capacity: 800 lbs. / up to a 20-foot-long canoe or kayak
• Dimensions:- Length: 13' 3"
• Width (without crossbars): 55"
• Frame Width Assembled (between fenders): 40"
• Cross Bar Spread (adjustable): 44"–63"
• Cross Bar Length: 78"
• Height of Cross Bars (from ground): 22"
• Weight: Total: 195 lbs.; Tongue Weight (unloaded): 25 lbs.
• Frame Material: 11-gauge powder-coated marine-grade galvanized steel
• Ball Size for Vehicle Attachment: 2"
• Ball Height: 18" (from ground to top of ball)
• Recommended Tire Pressure: 35–40 PSI

What’s Included

• Instruction Manual & Registration Documentation
• Assembly required. Ships as a multi-boxed item (5 cartons).

Additional Highlights

• Pre-assembled hubs for clean and effortless installation
• Large oversized pontoon wheels with marine-grade sealed bearings for off-road travel
• Reinforced steel tongue capable of transporting boats up to 20 feet in length
• Durable 78-inch steel load bars featuring D-ring tie-downs
• Plug-and-play submersible LED light kit for reliable performance
