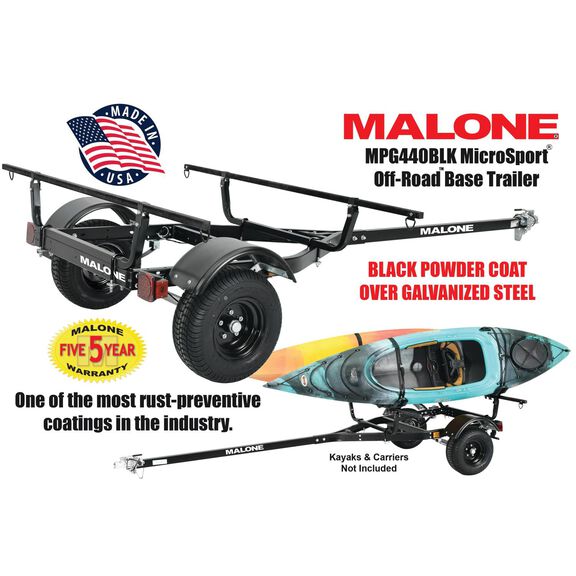

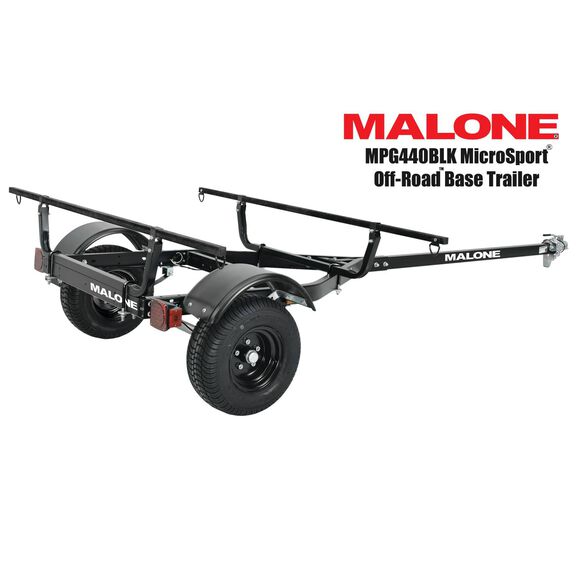

MicroSport Off-Road Trailer

MicroSport™ Off-Road Trailer Overview

The MicroSport Off-Road Trailer is a fully submersible sport trailer, engineered for durability, ease of use, and the safe transport of large kayaks or canoes. Its black powder-coated, pre-galvanized steel frame delivers superior rust prevention, ensuring years of reliable performance. Assembly is straightforward and can be completed in approximately three to four hours using standard tools. Proudly made in the USA, the trailer comes with a Five-Year Limited Warranty.

Features

• Rust-resistant construction: Black powder-coated, pre-galvanized steel frame for long-lasting performance
• Off-road capability: Large oversized pontoon wheels with marine-grade sealed bearings
• Lighting system: "Plug-and-play" submersible LED lighting kit (DOT-compliant)
• Reinforced steel tongue: Capable of transporting boats up to 20 feet in length
• Load bars: 78-inch steel, 1 ¼” square load bars with D-ring tie-downs for secure transport

Specifications

• Load Capacity: 800 lbs. / up to a 20-foot-long canoe or kayak
• Dimensions:- Length: 13' 3"
• Width (without crossbars): 55"
• Frame Width Assembled (width within fenders): 40"
• Cross Bar Spread (adjustable): 44"–63"
• Cross Bar Length: 78"
• Height of Cross Bars (from ground): 30"
• Weight: 197 lbs. (without accessories); Tongue Weight (unloaded): 25 lbs.
• Frame Material: 11-gauge powder-coated marine-grade galvanized steel
• Ball Size for Vehicle Attachment: 2"
• Ball Height: 18" (from ground to top of ball)
• Recommended Tire Pressure: 35–40 PSI

What’s Included

• Instruction Manual & Registration Documentation
• Assembly required. Ships as a multi-boxed item (5 cartons).

Additional Highlights

• Pre-assembled hubs for clean and simple installation
• Reinforced steel tongue for transporting boats up to 20 feet in length
• Durable 78-inch steel load bars with D-ring tie-downs
• Plug-and-play submersible LED light kit for reliable performance
