Air Conditioner Magnetic Drive Pump 1000gph 230V

Air Conditioner Magnetic Drive Pump 1000gph 230V

5 out of 5 Customer Rating
  • In Stock
Ships from supplier, typically 2-3 weeks.

Vendor Shipping Details

This item will be fulfilled from the vendor. Delivery time varies – typically 2–3 weeks.

Restrictions: This item does not ship to a PO Box, APO, FPO, DPO or international address. Expedited shipping is not available.

West Marine will email you when your order ships from the vendor.

Protect Your Purchase

Add extra coverage from the date of purchase beyond the manufacturer’s warranty. Details

What's Covered?

PLUS adds up to 2 more years of coverage beyond the Manufacturer's Warranty and offers extra coverage from the date of purchase throughout the extended term. PLUS includes:

  • Wear and Tear Coverage
  • Power Surge Protection
  • Exchange for products under $400
  • Onboard service on products over $750
  • Up to 5 years of total coverage

Your PLUS plan goes into effect with your purchase ‐ no registration required. Purchase your PLUS plan online, in stores or by calling 1 (800) 262-8464.

This item is currently unavailable.
Enter your email address to be added to the waitlist.
Model # 13781471 Mfg # 9108500056
Truck Freight

Truck Freight is used to ship items that exceed standard shipping limitations on weight and/or size. Delivery is only applicable within the contiguous United States. Additional shipping fees apply. Signature required for receipt of shipment.

Warning Hazard shipping
Item Can only Ship to Store

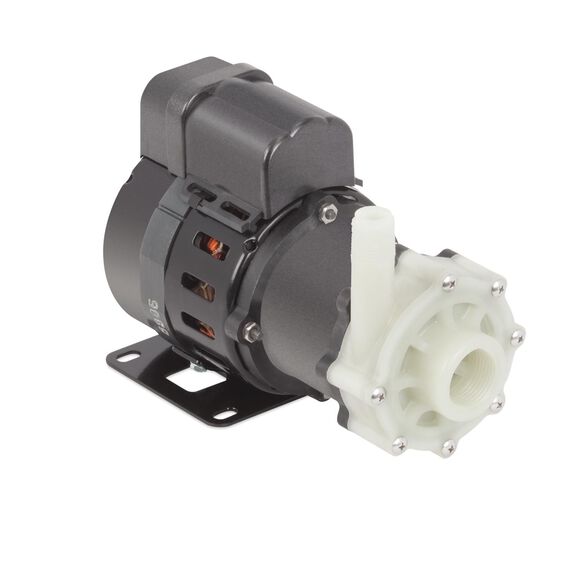

Engineered for efficient, trouble-free performance and easy maintenance, this pump features an air-cooled seal-less centrifugal magnetic drive pump. Ideal for marine air conditioners and refrigerators. Pump is not self-priming and cannot be run dry.


  • Serviceable with a screwdriver
  • Does not require a shaft seal
  • Capable of handling mildly or highly corrosive chemicals, acids and solvents
  • UL listed and rated as continuous duty


  • Voltage: 230V; 50/60HZ
  • Maximum current draw: 1A
  • Maximum flow rate: 17gpm, 1020gph
  • Maximum head rate: 11psi
  • Maximum pressure: 50psi
  • Port size: 1"fpt inlet with 1/2"mpt outlet
  • Maximum liquid temperature: 190°F
Amperage 2.1 Amps
Dimensions 4.38" Width x 6.19 Height x 9.27" Length
Type AC Circulation Pumps
Voltage 230 Volt AC
Reproductive Harm –
