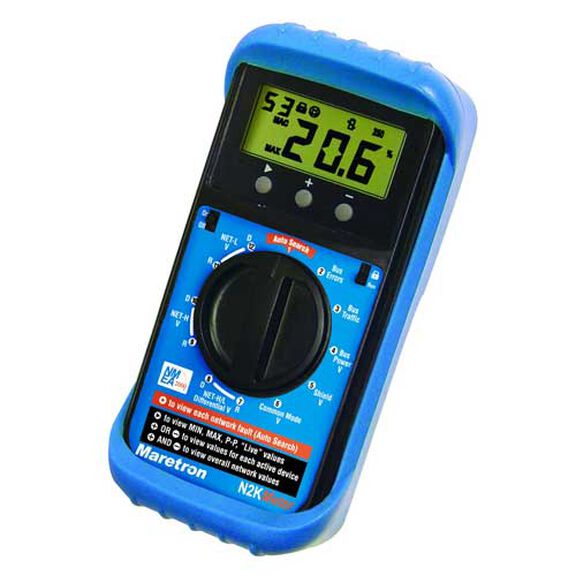

N2KMeter Diagnostic Tool for NMEA 2000 Networks

The N2KMeter enables trained and untrained personnel to diagnose and trouble-shoot network installations quickly and easily. Completely passive on the network, the meter analyzes both data and power lines on the network. In seconds, both network-wide and device-specific traffic as wellas power monitoring information is captured and displayed on a simple user interface.The N2KMeter uses a patented integrated intelligence technique to summarize multiple NMEA 2000 network operational variables into a single health index. To a service technician, it's a "guru-in-a-box", providing a detailed reading of network performance. It summarizes NMEA 2000 network health by displaying a happy face icon, indicating a healthy network; a sad face, indicating a serious problem; or a neutral face, indicating nominal performance (a good indication to repair things before they actually fail). The N2KMeter then walks the user through each fault condition and its source, or it can record key operating parameters for offline review.

• Diagnostic tool for NMEA 2000® networks
• Evaluates physical layer device functions on a network
