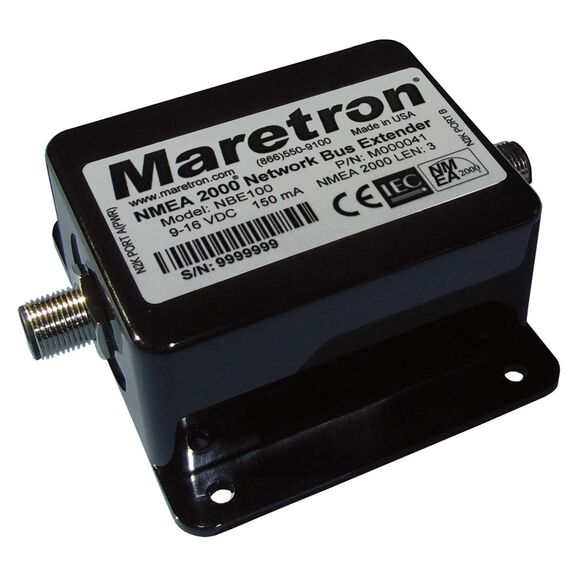

MARETRON NMEA 2000® Network Bus Extender
Maretron's NBE100 (Network Bus Extender) allows you to extend the maximum node count, network trunk length and cumulative drop length of any NMEA 2000® network. The NBE100 solves bus errors and other electrical issues caused by exceeding any of these limitations and makes design of large networks easier. NMEA 2000® networks have a maximum of 50 nodes allowed on a single network, a maximum network trunk length of 200m and a maximum cumulative drop length of 78m.
Key Features
- Segments a single large NMEA 2000® network into two smaller electrical segments
- Optically isolates network segments, increasing signal integrity and network reliability
- Allows all NMEA 2000® devices to operate as if they were still on a single NMEA 2000® network
