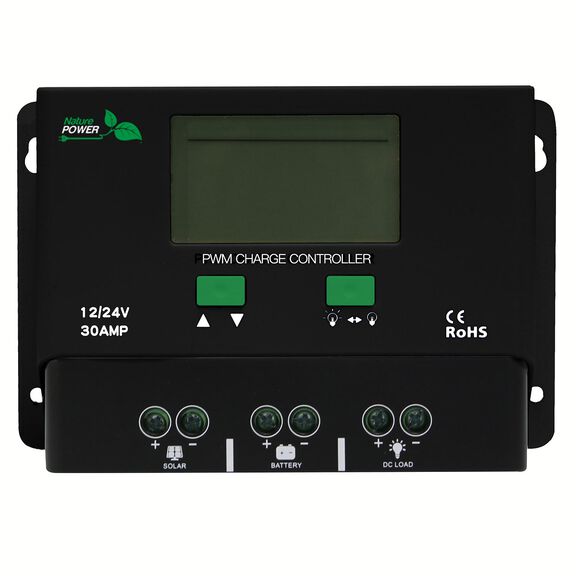

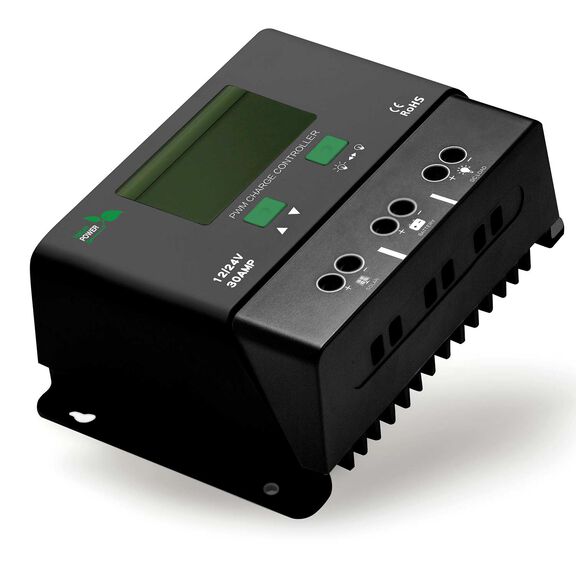

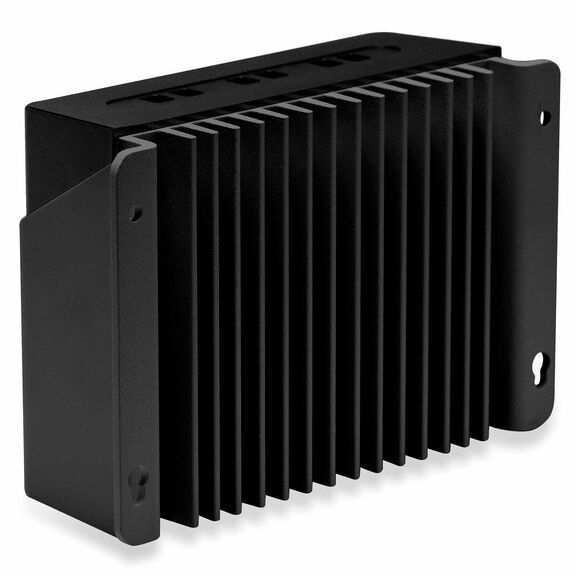

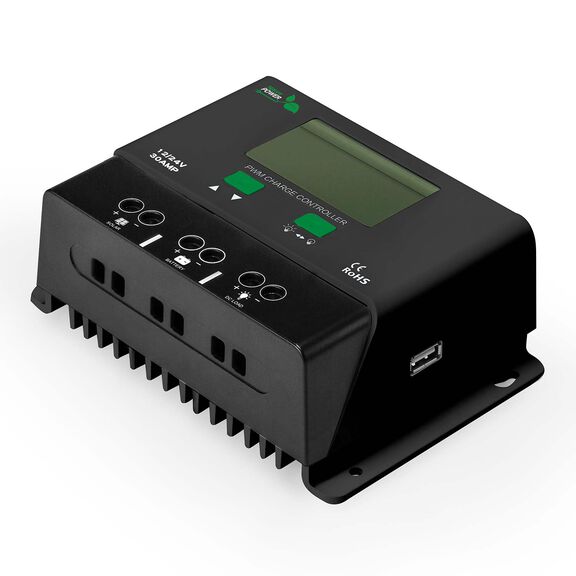

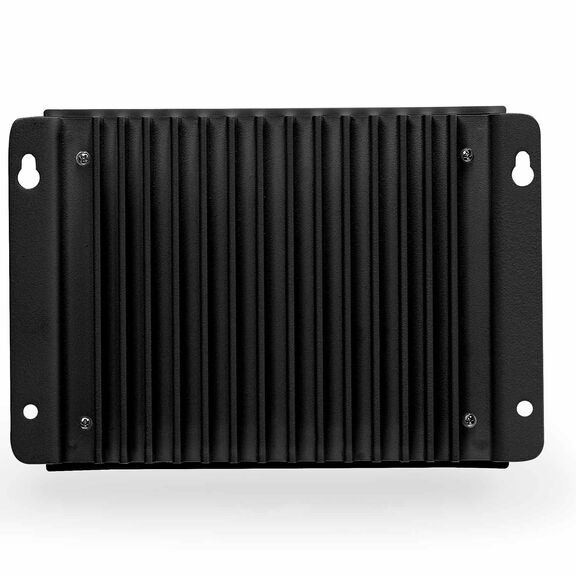

30A Solar Charge Controller
Model #
18606830
Mfg #
60032
$119.99
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
Quantity not available. Please adjust.
−
+
Complete Your Purchase
This 30-Amp Charge Controller regulates the current from one or several solar panels to avoid overcharging 12-volt batteries.
Any solar panel that is rated 12 watts or higher requires the use of a solar charge controller to regulate the current and voltage going to the battery. This 30 Amp Charge controller can handle up to 450 Watts of Solar array. It will automatically recognize if you are using a 12v or 24v system. Download the APP ChargePro for mobile phone monitoring and operation. Solar charge controllers are for permanent installation and should be installed close to the battery in a dry and ventilated area.
Key Features
- Use with any 12 Volt or 24 Volt system
- Loads current and battery voltage in five-second intervals
- Handles up to 525 watts of solar array
- Regulated PWM output to prevent overcharging
- Protects battery from high voltage surges, short circuit, low voltage discharging
- Features overcharge protection, easy access front connection terminals and LED charge status indicators
- Discharging Current: 30A
- Charging Current: 30A
- Overcharge Protection: 14.4V±1%
- Starting Voltage 12.3V
- Over discharge: Cut-off 10.7V±1%, Resume 12.6±1%
- No load current: ≤10mA
- Display: LED
- Operating temperature: -13ºF to 131 ºF (-25℃ to 55℃)
- Altitude: Below 3.4 miles (5500m) [above 1.24 miles (>2000m) causes reduced power]
This product can expose you to chemicals, including Di(2-ethylhexyl) phthalate (DEHP) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information, go to
www.P65Warnings.ca.gov
Amperage
30 Amps
Type
Controller
Voltage
12/24V DC
Warranty
Two Years
Wattage
525 Watts
