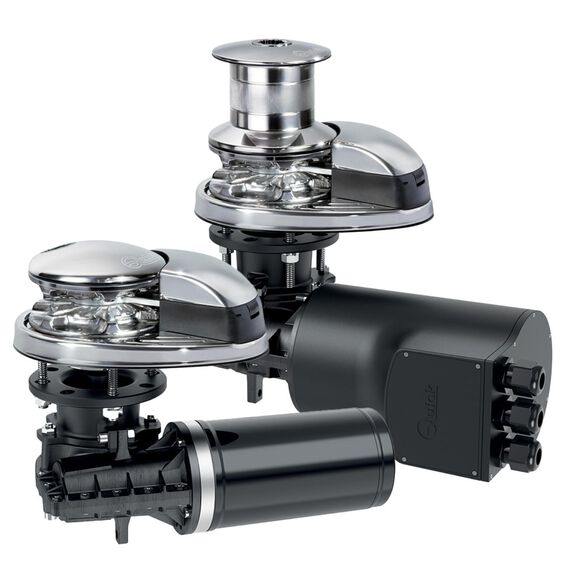

The DP2 is a vertical application windlass designed for boats with limited deck space. It is constructed of AISI 316 stainless steel, a durable material for harsh marine environments, with the motor-gearbox housed below deck. Additional features include an IP67 watertight motor, an anodized aluminum gearbox, and an inspection lid.
The DP2 series is offered with or without a drum capstan for rope retrieval and in various gypsy sizes for rope and chain retrieval. These models are the gypsy-only version with a 7mm / 1/4" gypsy. Each is sold complete with the windlass, solenoid unit, clutch handle, and mounting hardware.
Key Features
- Vertical design for limited deck space
- AISI 316 stainless steel construction
- Rope and chain on a single 7mm / 1/4" gypsy
- IP67 watertight motor
- Anodized aluminum gearbox
- Inspection lid
Specifications
500W Model (DP2 512)
- Motor Power: 500W
- Maximum Pull: 1,455 lb
- Maximum Working Load: 441 lb
- Working Load: 143 lb
- Current Draw at Working Load: 80A
- Recommended Boat Length: 16–30 ft
- Weight: 21.6 lb
700W Model (DP2 712)
- Motor Power: 700W
- Maximum Pull: 1,499 lb
- Maximum Working Load: 660 lb
- Working Load: 220 lb
- Current Draw at Working Load: 95A
- Maximum Chain Speed: 74.1 ft/min
- Chain Speed at Working Load: 38 ft/min
- Recommended Boat Length: 23–39 ft
All Models
- Voltage: 12V DC
- Gypsy: 7mm / 1/4" chain
- Drum: None
- Construction: AISI 316 stainless steel
- Country of Origin: Italy
What's Included
- Windlass
- Solenoid unit
- Clutch handle
- Mounting hardware
Diameter
7mm / 1/4" Chain
Material
Stainless Steel
Mounting Hardware
Included
Style
Vertical
Type
DP2 Vertical Windlass
Voltage
12V
