Prince DP3 P Vertical Windlass, 1000W, 12V
Model #
24317273
Mfg #
FSDP31012010B00
$2,049.99
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
New
Ask Skipper
New
Prince DP3 P Vertical Windlass, 1000W, 12V
Model #
24317273
Mfg #
FSDP31012010B00
$2,049.99
Size:
10mm/3/8" Gypsy
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
Quantity not available. Please adjust.
−
+
Complete Your Purchase

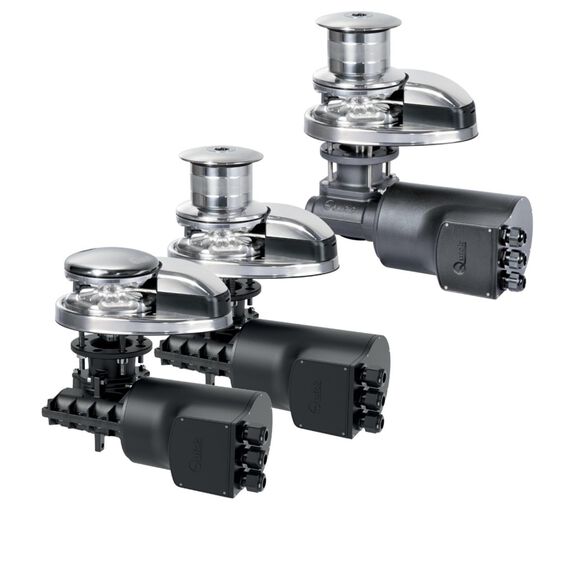

The Prince DP3 is a vertical application windlass perfect for boats with limited deck space. This unit has an AISI 316 stainless steel base, which is durable in harsh marine environments. This unit comes in different variations, such as with or without the drum capstan for rope retrieval and various gypsy sizes for rope and chain retrieval; these models are the gypsy-only versions. Additional features include an IP67 watertight motor, technopolymer gearbox, and inspection lid. This unit is sold complete with the windlass, solenoid unit, clutch handle, and mounting hardware.
Key Features
- Rope and chain on a single gypsy
- Integrated sensor and magnet for chain counter
- Manual free-fall system
- Supplied with pressure lever
- Optional accessories (sold separately): hydraulic magnetic circuit breaker, foot switches, handheld remote control, chain counters, and radio remote control
Specifications
8mm/5/16" Gypsy
- Chain: 8mm DIN 766, 8mm ISO, 5/16" G4, 5/16" BBB
10mm/3/8" Gypsy
- Chain: 10mm DIN 766, 10mm ISO, 3/8" G4
- Rope: 5/8" three-strand
All Models
- Motor Power: 1000W
- Voltage: 12V DC
- Maximum Pull: 2,204 lb
- Maximum Working Load: 816 lb
- Working Load: 264 lb
- Current Draw at Working Load: 140A
- Recommended Boat Length: 33–46 ft
- Drum: None
- Country of Origin: Italy
What's Included
- Windlass
- Solenoid unit (T6315-12)
- Clutch handle
- Mounting hardware
Amperage
140 Amps
Boat Length
33 to 46 ft
Material
Stainless Steel, Aluminum
Maximum Boat Length
46 ft
Maximum Pull
2,204 lb
Minimum Boat Length
33 ft
Quantity Included
1
Type
DP3 P 1012 WINDLASS 1000W 12V 10mm - 3/8"
Voltage
12 Volts
Wattage
1000 Watts
