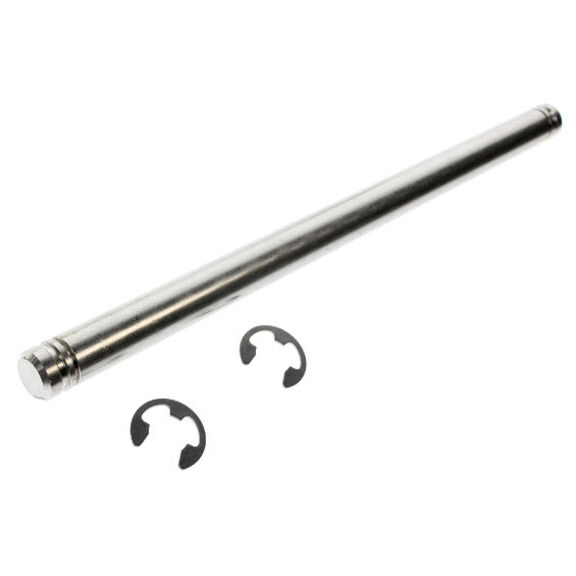

Mercury Marine / Quicksilver Anchor Pin Assembly 17-815953A01
The Mercury Marine / Quicksilver Anchor Pin Assembly (part number 17-815953A01) is a genuine OEM sterndrive component specifically engineered for MerCruiser Alpha One Gen II applications. This pivot pin plays a critical role in the trim and tilt system, providing the pivot point for the sterndrive's hydraulic ram assembly. Because it is a factory-original part, it meets the exact dimensional tolerances and material specifications required for proper fit and long-term durability.
The assembly measures 10.73 inches in overall length (OAL) with a 0.625-inch outer diameter, and weighs approximately 0.93 pounds. It carries a CURRENT production status, meaning it is actively manufactured and available through authorized Mercury Marine / Quicksilver distributors and dealers. This part directly supersedes the earlier OEM number 815953 and is cross-referenced with several aftermarket equivalents for reference purposes.
Key Features
- Genuine Mercury Marine / Quicksilver factory OEM part — not aftermarket
- Part number: 17-815953A01 (also listed as 17815953A01 and 815953A01)
- Fits: MerCruiser Alpha One Gen II sterndrives
- Overall length: 10.73 inches; Outer diameter: 0.625 inches
- Supersedes OEM part number 815953
- Cross-references: Sierra Marine 18-2395, SEI Marine 9B-116-14, OBR Red Rhino MR-934, Mercury Marine 178M0065070, GLM 21424
- Current production status — actively available
- Shipping weight: approximately 0.93–0.94 lbs
