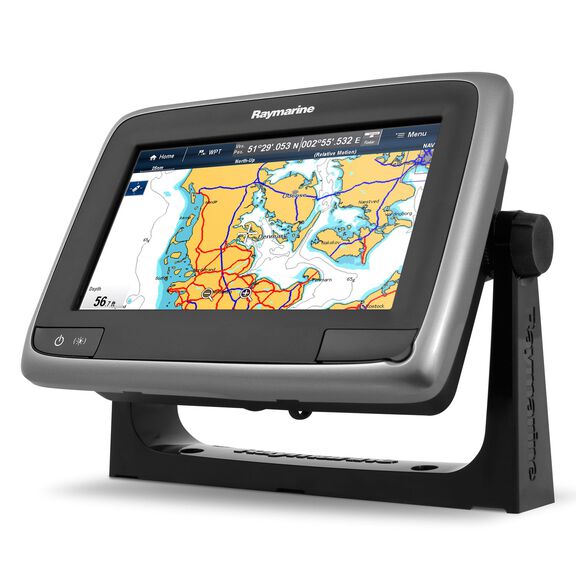

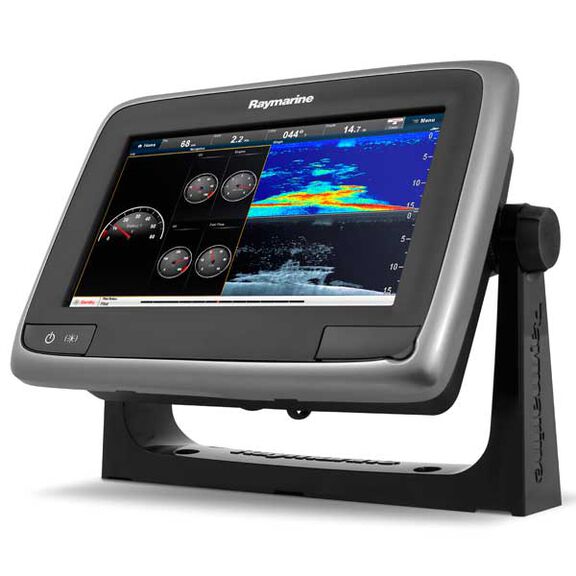

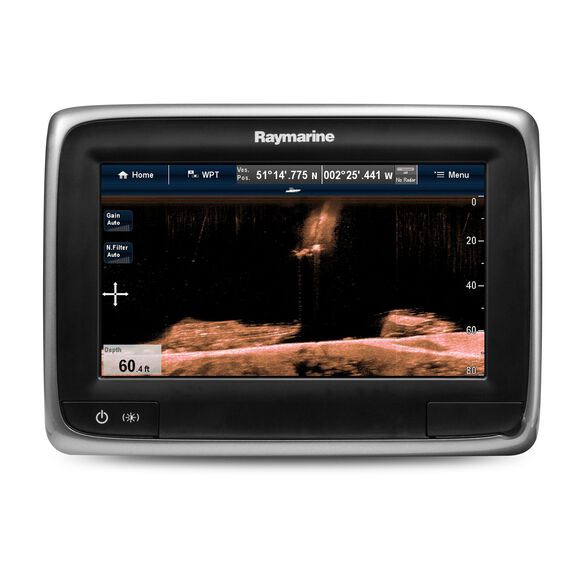

Raymarine’s a78 is a full-featured GPS/chartplotter and fishfinder with amazing CHIRP DownVision™ Sonar technology. CHIRP DownVision lets you see fish and bottom structure like never before by delivering stunning images of underwater structure, fish, wrecks and more with photo-like clarity. The a78 also features a CHIRP fish targeting channel which makes it easy to identify both baitfish and predators. The a78 includes the CPT-100 transom mount transducer for fish targeting, DownVision™ and temperature sensing. Unlike competitive products that max out around 200 feet, the a78’s CHIRP DownVision™ and fish targeting sonar has a maximum depth range of 600 feet!

This a78 model includes Navionics+ charts on microSD with US/Canadian Coastal, US Inland and Bahamas coverage. If desired, you can upgrade to 3D charting and satellite photos with Navionics Platinum Plus charts. The a78 can be expanded to include radar, satellite weather, AIS, thermal imaging and much, much more. The a78 features a 7.0” diagonal LED backlit LCD display that is optically bonded to its touchscreen for superior visibility day and night.

Radar
Display radar data with an optional Raymarine Digital, HD and Super HD Color radar antenna

Instrument Displays
Sharp, easy-to-read analogue and digital instrument display transforms aSeries into a powerful instrument display

IP Cameras
aSeries MFDs support IP cameras (requires ONVIF compatibility) including record and playback facilities. a9 and a12 models also support analogue and thermal video

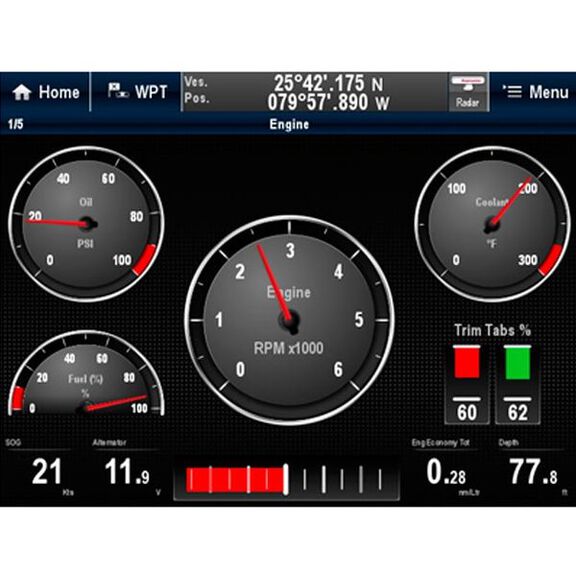

Engine Displays
Connect with NMEA2000 compatible engines for graphical engine data displays

Fuel Management
Fuel monitoring with time-to-empty and distance-to-empty calculations and fuel range rings display overlaid on navigation charts

Custom Screens
Display multiple screens at the same time, such as chart and radar information

Features

  • Two-sonars-in-one with powerful CHIRP DownVision™ and CHIRP fish targeting
  • CPT-100 transom mount CHIRP transducer included
  • Navionics+ cartography included (US/Canadian Coastal, US Inland and Bahamas coverage)
  • Super-bright 7" diagonal touchscreen with LED backlighting
  • Built-in 50-channel GPS receiver
  • Video-over-IP support for networked cameras
  • Built-in Bluetooth wireless connection for optional media playback or remote control
  • Ethernet (RayNet) and NMEA2000 (SeaTalkng) Network Compatible
  • Compatible with Navionics Silver, Gold, Platinum or HotMaps Charts on MicroSD

Included with this product:

  • a78 Multi-Function Display
  • CPT-100 transom mount CHIRP transducer
  • Navionics Gold cartography with US/Canadian Coastal, US Inland and Bahamas coverage
  • Trunnion bracket, flush mount kit and mounting hardware
  • Sun cover
  • Documentation pack





Other Transducer Options:

This product will also operate well with these select transducers, sold separately. Depending on the style of the transducer, you'll get depth, speed and/or temperature readings:

Transducer Type: CHIRP Reading(s) Power Material Depth Model
CPT110 Thru-Hull CHIRP DownVision™ Transducer with Fairing Block Fishfinder/DownVision™ N/A Plastic 600' 14907893
CPT120 Thru-Hull CHIRP DownVision™ Transducer with Fairing Block Fishfinder/DownVision™ 300W Bronze 600' 14907901
Warning
www.P65Warnings.ca.gov
View More View Less

Antenna Internal GPS Antenna
Cartography Navionics Gold US Coastal
Diagonal Screen Size 7"
Dimensions 8 1/16" Width x 5 11/16" Height x 2 3/4" Depth
Display Color Color
Display Shape Square
Display Type LED backlit , Sunlight-Viewable Touchscreen
Frequency Dual-Band CHIRP
Maximum Depth 600'
Mount Type Tilt & Swivel
Resolution 800 x 480
Specific Transducer CPT-100 DownVision
Warranty Three Years (with Product Registration)
